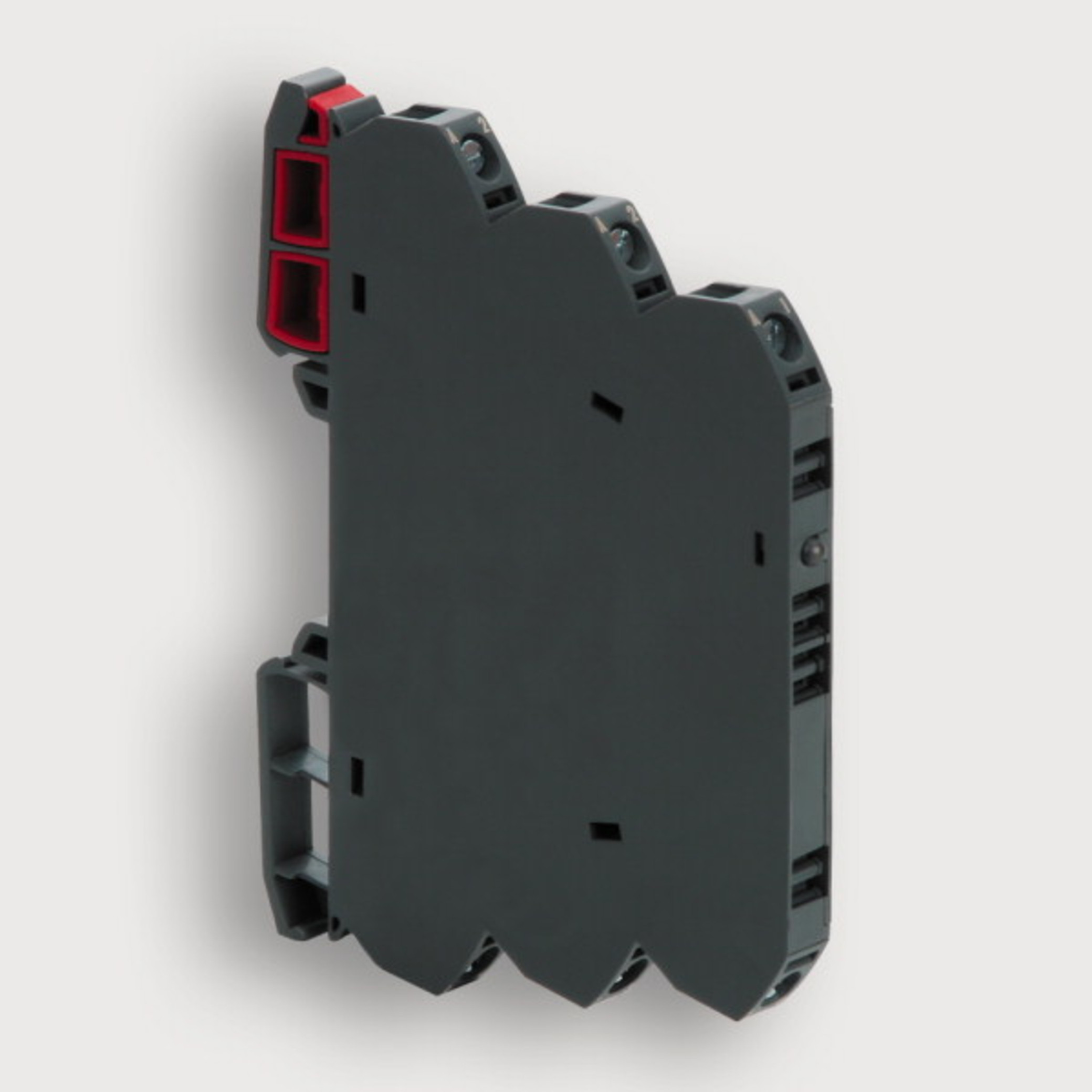

750528.0000 - LCIS analogue/analogue converter, passive

750528.0000 - LCIS analogue/analogue converter, passive

Part No.
750528.0000
Type
LCIS-P1K-0528-62-S
Article available at short notice
PU
1 piece
Interface Technology
LCIS analogue/analogue converter, passive

Description

Input: 4–20 mA
Output: 4–20 mA
Insulation: 1.5 kV, 2-way isolation, passive converter

Technical Data

Input

Input signal
4–20 mA
Input variable
Single analog signal
Galvanic isolation I/O
2-way isolation
Input overload capability
max. 35 mA

Output

Output signal
4–20 mA
Max. load impedance at I-output
1000 (RB)
Residual ripple
<5 mVeff (load impedance 100 )

Operating data

Accuracy
0.1 % FSR @ 23 °C
Build-up time (Accuracy 1%)
6 ms (for working resistance 500 and 20 mA)

General

Rated voltage UN
passive
Input/output protection
Suppressor diode (33 V)
Burden error
<0.06 % from measured value / 100 working resistance
Temperature drift /K
<150 ppm / K FSR
Temperature drift (working resistance >600R)
<100 ppm / K FSR
Temperature drift (working resistance >600R)
<150 ppm / K FSR
Insulation voltage input / output
1.5 kVeff
Housing material
PA 6.6 (UL 94 V-0, NFF I2, F2)
Color of the housing
  • RAL 7012
  • basalt grey
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Protection class
IP20
Installation position
any
Connection type
  • Screwed terminal
  • single wire
  • 0.25 mm2–2.5 mm2 / AWG 20–14
  • fine stranded wire with ferrule
  • 0.25 mm2–1.5 mm2 / AWG 20–16
Operation temperature range
-25 °C … +60 °C
Storage temperature range
-40°C…80°C
Dimensions (w × h × d)
6,2×93×71 mm
Weight
0,03 kg/piece
PU
1 piece
Certifications
  • cULus (E135145)
  • DNV GL
Standards
EN 60947-5-1

Failure Rate Prediction (MTBF)

Standards
  • Electronic components – Reliability – Reference conditions for failure rates and stress models for conversion: EN/IEC 61709
  • Failure Rates of Components – Expected values: SN 29500
Failure rate at +45 °C
127 fit
Failure rate at +45 °C
7892161 h
1 fit equals one failure per 109 component hours
The indicated temperature is the mean component ambient temperature.
Comments
  • The results are valid under following conditions:
  • Automotive environment or industrial areas without extreme dust levels and harmful substances
  • Continuous operation 8760 h per year
Comments
When connected this passive isolator has a non-reactive transmission, so that the current in the input circuit is not interrupted for an output interruption.
