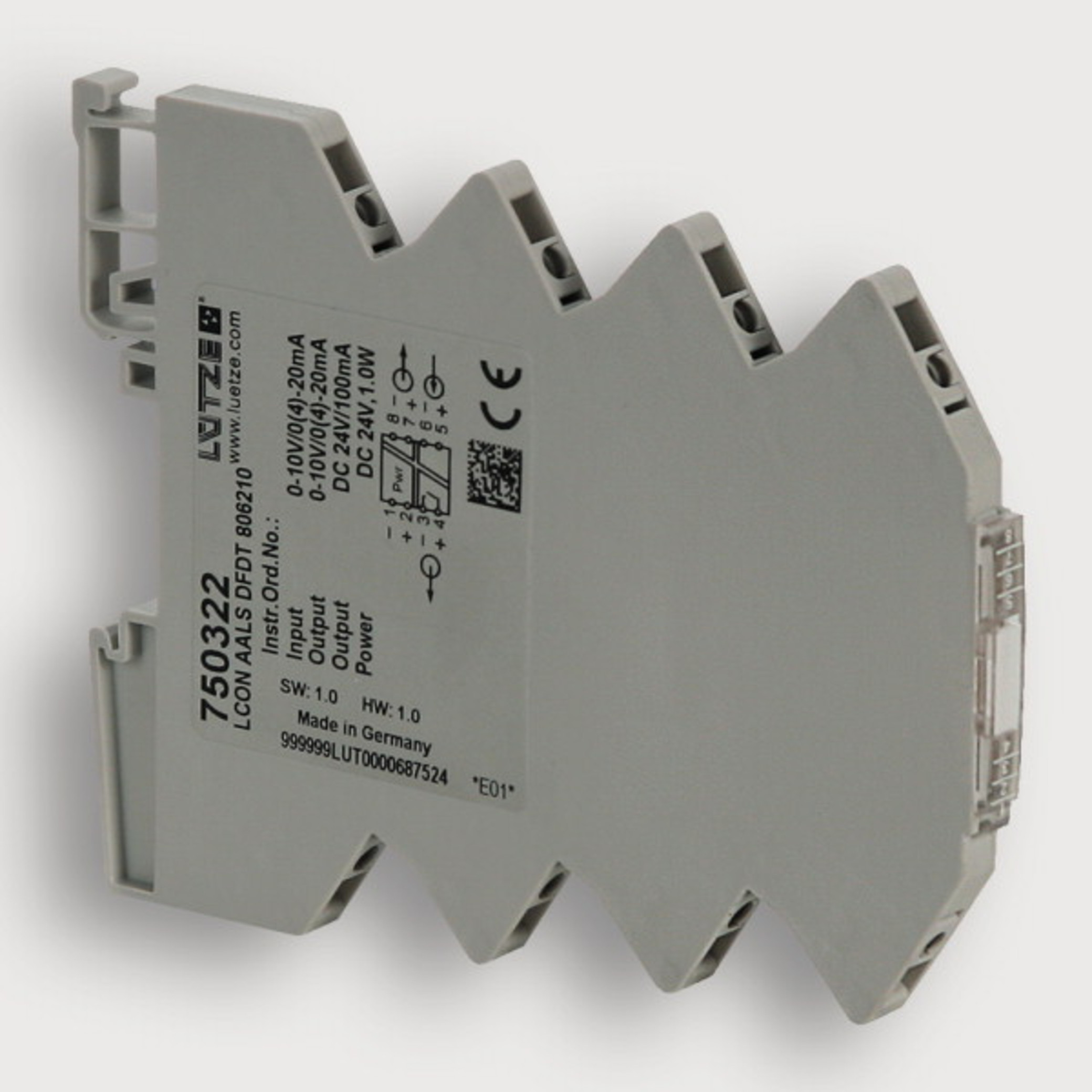

750360 - Microcompact analog/limit value switch

750360 - Microcompact analog/limit value switch

Part No.
750360
Type
LCON ALS FDT 806210
Article on request
PU
1 piece
Interface Technology
Microcompact analog/limit value switch

Description

Input: ±30 V, ±50 mA, ±5 A adjustable – adjustable limit value switch
Output: Semiconductor NO contact
Insulation: 2.5 kV, 2-way isolation

Technical Data

Input

Input variable
Analogue signals
Measurement input
  • +30/-30 V, +50/-50 mA, DC +5 A/-5 A
  • adjustable via software FDT/DTM, connection via micro USB
Galvanic isolation I/O
2-way isolation
Step response (10–90%)
4 ms–750 ms (adjustable by means of filter stage 1–5, default: filter stage 4 = 200 ms)
Parameterisation
Software FDT/DTM
Zero /Span
freely adjustable
Input resistance
>800 k @ +30/-30 V, <30 @ +50/-50 mA, 10 m @ DC +5 A/-5 A

Output

Output signal
+30/-30 V, +50/-50 mA, DC +5 A/-5 A, adjustable via software FDT / DTM, connection via USB service cable
Contact type
K1,K2: Semi-conductor, N/O contact
Max. switching voltage
DC 30 V
Max. switching current
DC 100 mA, not short circuit protected
Status display output
LED yellow K1 and LED yellow K2
Operating mode
Limit value, window, alarm output / additionally adjustable: Hysteresis, input / output delay
Parameterisation
Software FDT/DTM

Operating data

Accuracy
  • 0.1 % FSR @ +30/-30 V, +50/-50 mA
  • 0.5 % FSR @ +5 A/-5 A
Linearity error
  • ±0.05 % FSR @ +30/-30 V, +50/-50 mA
  • ±0,1 % FSR @ +5 A/-5 A

General

Rated voltage UN
DC 24 V
Operation voltage range
16.8–30 V
Rated current
approx. 12 mA
Status indication
LED green, yellow (K1, K2), red (error)
Input/output protection
Overvoltage DC 30 V
Temperature error
<100 ppm/K FSR
Data storage
Flash
Insulation voltage input / output
2.5 kVeff
Resolution
16-bit
Configuration
Software: FDT / DTM
Housing material
PA 6.6 (UL 94 V-0)
Color of the housing
light grey
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Protection class
IP20
Installation position
any
Connection type
  • Screw terminal
  • 0.14 mm2 – 1.5 mm2
Operation temperature range
-40 °C … +70 °C
Storage temperature range
-40°C…85°C
Dimensions (w × h × d)
6,2×90×115,5 mm
Weight
0,05 kg/piece
PU
1 piece
Certifications
  • cULus (E135145)
  • Cl.1 Div2, Gr. A, B, C, D, T4A
  • GL
Standards
EN 60947-5-1

Failure Rate Prediction (MTBF)

Standards
  • Electronic components – Reliability – Reference conditions for failure rates and stress models for conversion: EN/IEC 61709
  • Failure Rates of Components – Expected values: SN 29500
Failure rate at +45 °C
435 fit
Failure rate at +45 °C
2298502 h
1 fit equals one failure per 109 component hours
The indicated temperature is the mean component ambient temperature.
Comments
  • The results are valid under following conditions:
  • Automotive environment or industrial areas without extreme dust levels and harmful substances
Comments
NOTE: The device can be configured using the DIP switches on the side or using the accessory LCON ZB service cable (Item no. 750894).
Dimensions
PIN assignment
