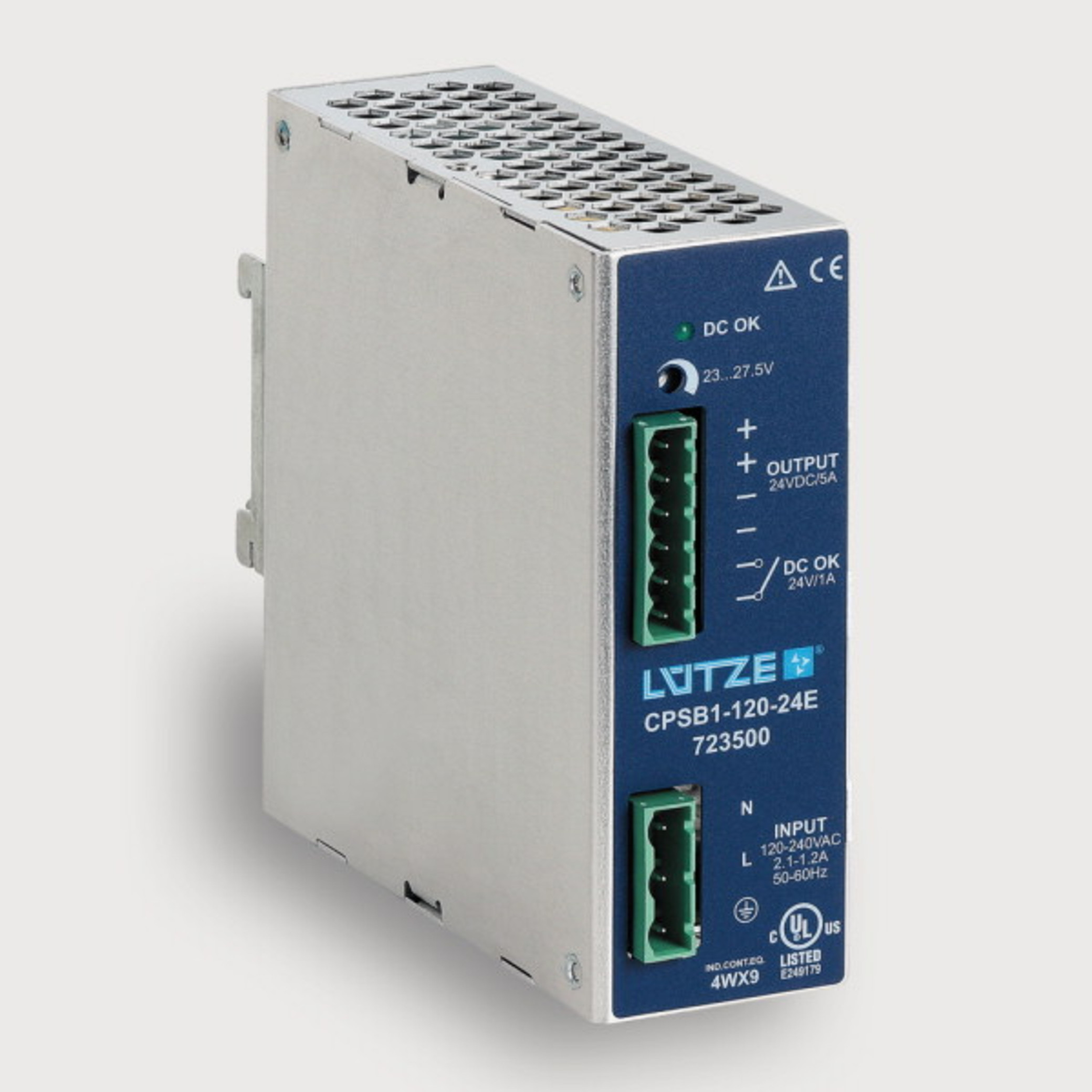

723500 - regulated, 120 W

723500 - regulated, 120 W

Part No.
723500
Type
CPSB1-120-24E
Article on stock
PU
1 piece
Power supply
regulated, 120 W

Description

Switchmode power supply, PFC, Single-phase
Input: wide-range input AC 85–264 V, DC 110–345 V
Output: DC 24 V, adjustable

Technical Data

Input

Number of phases
1
Rated voltage UN
AC 120/240 V
Operation voltage range
AC 85–264 V / DC 110–345 V
Line frequency
47–63 Hz
Rated current IN
2.1 A @ AC 120 V / 1.2 A @ AC 240 V
Inrush current
<40 A
Internal fuse
T3, 15 A/AC 250 V
External fuse
Mini-circuit breaker: C 6 A
Power factor correction P.F.C.
>0.6

Output

Rated voltage UN
DC24V
Rated current IN
5 A
Max. output current
7 A, 30 s
Heat dissipation
<18 W
Setting range Uout min./Uout max.
DC 23–28 V
Load regulation
<1 %
Ripple and Noise
<60 mV
Hold up time
>10 ms @ AC 120 V / >60 ms @ AC 230 V
Status indication DC ON LED green
≥21.6 V
Status indication DC LOW LED red
≤21.6 V
Parallel / redundant mode
yes/via external decoupling diode e.g. 722999
Efficiency
>87 %
Overtemperature protection
yes
Over voltage protection
>DC 33 V (UA=24 V)
Short circuit
Hiccup Mode

Monitoring

DC ON Control (Rdy)
N/O contact
Switching voltage
AC 300 V / DC 150 V
Switching current
AC/DC 1 A
Switching capacity
300 VA / 30 W
Isolation voltage
AC 500 V

General

Insulation voltage input / output
DC 4.2 kV
Insulation voltage input / ground
DC 2.2 kV
Insulation voltage output / ground
DC 750 V
Derating
>60 °C: -2.4 W/°C
Operation temperature range
-20 °C … +70 °C (Derating)
Storage temperature range
-25°C…85°C
Cooling
Air convection, 50 mm distance top/bottom, 20 mm side
Housing material
Aluminum
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Installation position
vertical
Protection class
IP20 (IEC 529 / EN 60529)
Protection class
I
Over voltage category
III
Degree of polution
2
Weight
0,4 kg/piece
Connection type
  • Screw terminal
  • 0.20 mm2 – 2.5 mm2
  • plug-in
Dimensions (w × h × d)
40×115×110 mm
Certifications
cULus (E249179)
Standards
  • IEC 950
  • EN 60950
  • UL 60950
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61000-4-2/3/4/5/6/11
PU
1 piece
