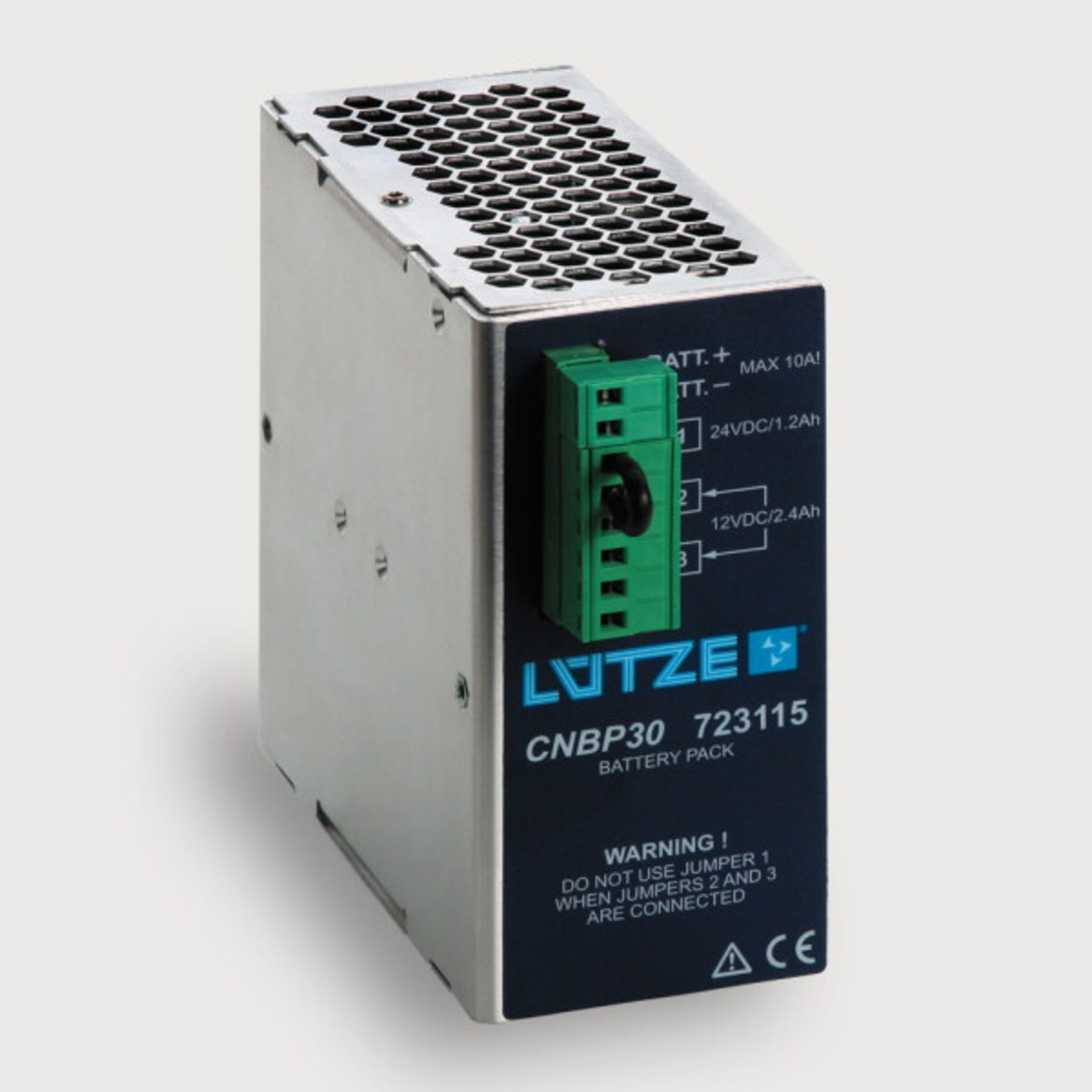

723115 - Lead acid battery housing

723115 - Lead acid battery housing

Part No.
723115
Type
CNBP30
Article available at short notice
PU
1 piece
DC UPS Battery Management System
Lead acid battery housing

Description

Battery housing for holding two lead batteries 12 V / 1.2 Ah

Technical Data

Energy storage

Memory type
2× lead batteries DC 12 V / 1.2 Ah
max. charging current
600 mA @ DC 12 V, 300 mA @ DC 24 V
Fuse for memory medium
15 A, automatic resetting

Output

Max. output current
5 A @ DC 2 V, 3 A @ DC 24 V

General

Insulation voltage input / ground
0.5 kV, 1 min.
Operation temperature range
-20 °C … +40 °C
Storage temperature range
-20°C…40°C
Relative air humidity
95 % not condensing
Cooling
free convection
Housing material
Aluminum
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Installation position
vertical, with 20 mm distance to other devices
Protection class
IP20 (EN 60529)
Over voltage category
II
Degree of polution
2 (IEC 664-1)
Configured weight max.
1,2 kg/piece
Connection type
Connector with screws: 2.5 mm2 (AWG 24–12)
Dimensions (w × h × d)
54×115×110 mm
PU
1 piece
Comments
Suitable for DC 12 V and DC 24 V applications, integrated self-healing fuse
