723110 - 240 W

723110 - 240 W

Part No.
723110
Type
CNUPS24
Article on stock
PU
1 piece

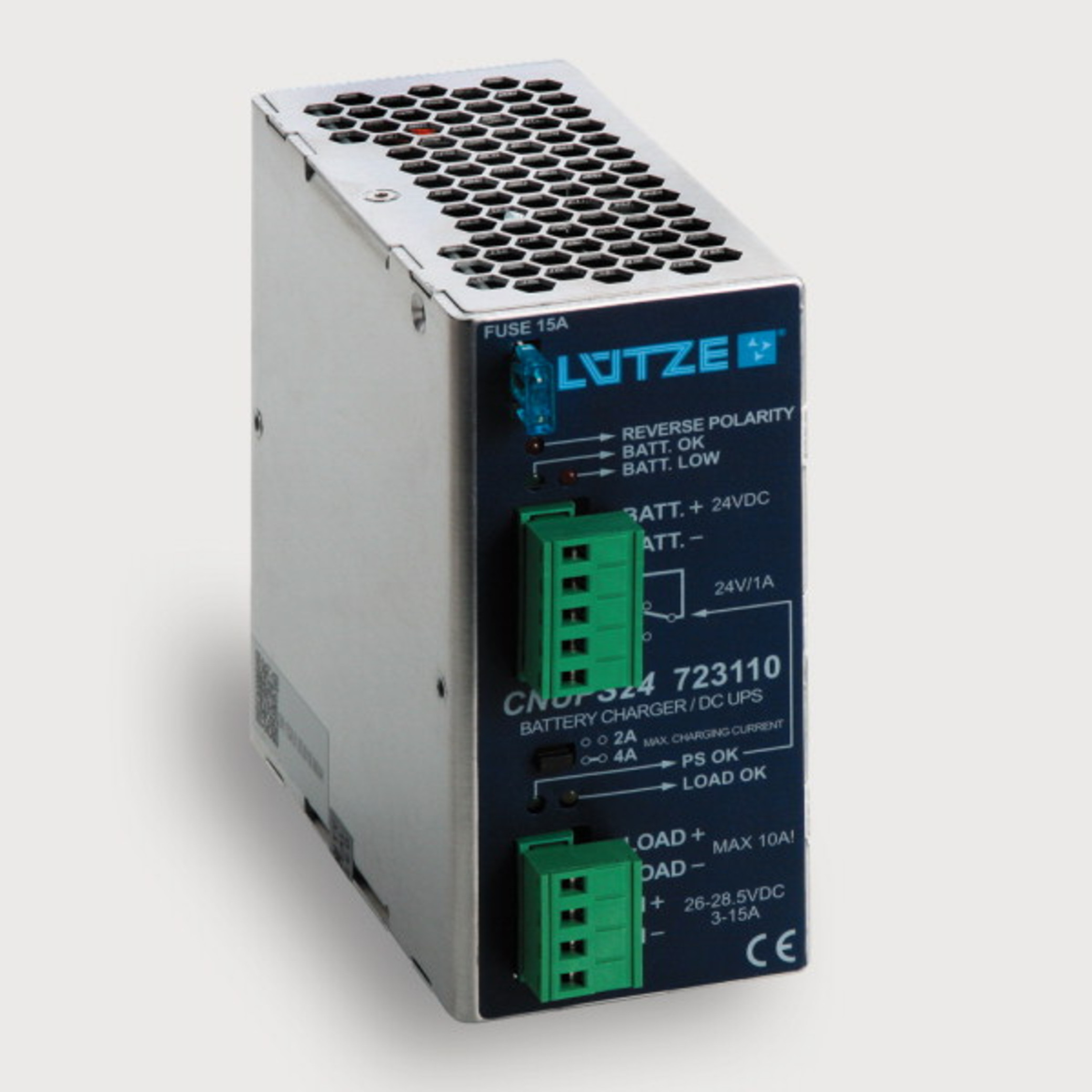

DC UPS Battery Management System
240 W

Description

Uninterrupted DC system voltage
DC UPS for lead batteries
Input: DC 24 V, Output: max. DC 10 A

Technical Data

Input

Input voltage
DC 26 – 28.5 V
Input current
DC 3 – 20 mA
Status display input
  • LED green: PS Ok, LED red: Reverse polarity
  • LED green: Battery OK, LED red: Battery low
Parameterisation
  • Button/LCD display
  • Software Powermaster
  • (free Download Lütze web page)
Protection device Input
none

Energy storage

Memory type
chemical (lead based, Ni-MH / Ni-Cd, Li-ION / LiFePo4)
Nominal battery voltage
DC 24 V
max. charging current
DC 2 A or DC 4 A
max. battery capacity
75 % @ 26 V, 85 % @ 27 V, 100 % @ 28 V
Max. output current
10 A
Backup time
depends on battery and charging current
Fuse for memory medium
Vehicle fuse 15 A / 42 V
Deep discharge protection
18.5 V ± 0.5 V

Output

Rated voltage UN
DC24V
Output voltage
DC 20 - 28 V
Rated current IN
20 A
Max. output current
DC 10 A

Status indication

Status display output
LED yellow: Load OK

Monitoring

Number of channels
1
Monitored functions
Battery mode
Switching voltage
DC 24 V
Switching current
DC 1 A
Contact type
Change over contact

General

Insulation voltage input / ground
0.5 kV, 1 min.
Operation temperature range
-20 °C … +50 °C
Storage temperature range
-20°C…85°C
Relative air humidity
95 % not condensing
Cooling
free convection
Housing material
Aluminum
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Installation position
vertical, with 20 mm distance to other devices
Protection class
IP20 (EN 60529)
Over voltage category
II
Degree of polution
2 (IEC 664-1)
Weight
0,3 kg/piece
Connection type
Connector with screws: 2.5 mm2 (AWG 24–12)
Dimensions (w × h × d)
63×117×110 mm
Certifications
cULus (E249179)
Standards
  • CE
  • EN 60950-1
  • EN 61000-6-2/4
PU
1 piece
Comments
  • Suitable for power supply with settable output voltage
  • Load mode with simultaneous charging
  • Integrated battery fuse
  • Deep discharging protection
