722999 - Redundancy module

722999 - Redundancy module

Part No.
722999
Type
CPSRM50
Article on stock
PU
1 piece
Power supply

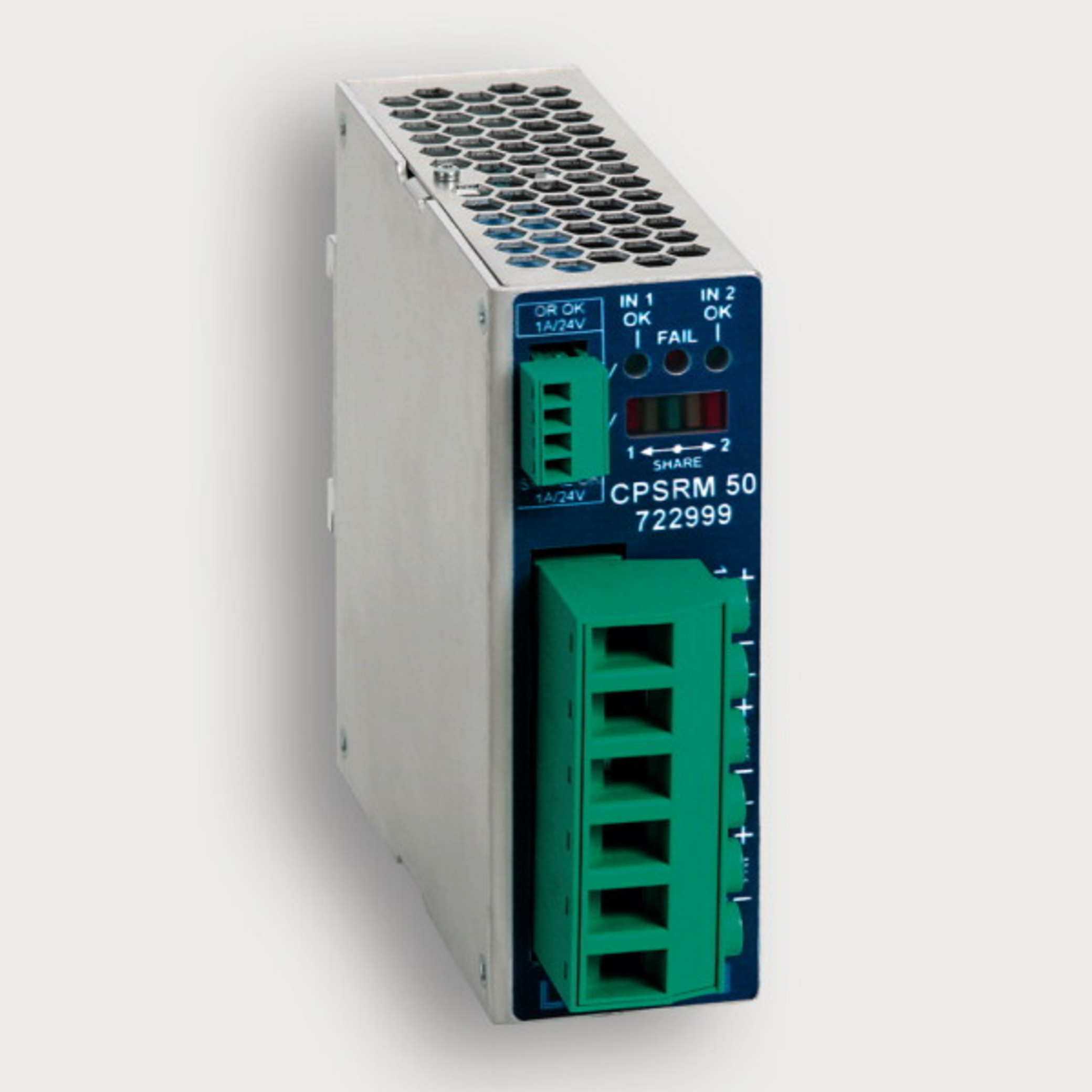

Redundancy module

Description

Redundant module 12 to 85 V, 50 A
Potential-free signalling contact
Status LED per input

Technical Data

Input

No. of inputs
2
Operation voltage range
DC 12–85 V
Rated current IN
max. 50 A per input

Output

Voltage drop
<0.2 V
Max. output current
300 A
Heat dissipation
max. 10 W
Status indication DC ON LED green
IN1, IN2 OK
Status indication DC ON LED red
Redundancy error
Overtemperature protection
No
Over voltage protection
No

Monitoring

DC ON Control (Rdy)
N/O contact
Switching voltage
AC 300 V / DC 24 V
Switching current
AC/DC 1 A
Switching capacity
300 VA / 30 W
Isolation voltage
DC 100 V

General

Operation temperature range
-20 °C … +75 °C
Storage temperature range
-25°C…80°C
Cooling
Air convection
Housing material
Aluminum
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Installation position
vertical
Shock resistance
30 g 6 ms, 20 g 11 ms, 3 shocks/direction, 18 shocks in total, IEC60068-2-27: 2008
Vibration resistance
5 – 17.8 Hz: ±1.6 mm, 17.8 – 500 Hz: 2 g 2 hours/axes X,Y,Z, IEC 60068-2-6: 2007
Protection class
IP20 (IEC 529 / EN 60529)
Over voltage category
II
Degree of polution
2
Weight
0,2 kg/piece
Connection type
  • Input
  • Screw terminal
  • plug-in
  • 0.20 mm2 – 16.0 mm2
  • Output
  • Screw terminal
  • plug-in
  • 0.20 mm2 – 16.0 mm2
  • Relays
  • Screw terminal
  • plug-in
  • 0.20 mm2 – 1.5 mm2
Dimensions (w × h × d)
40×115×110 mm
Certifications
cULus (E249179)
Standards
  • UL 508
  • EN 60950-1
  • EN 55022 Class B
  • EN 55024
  • EN 61000-4-2/3/4/6/8
  • EN 61204-3
PU
1 piece
