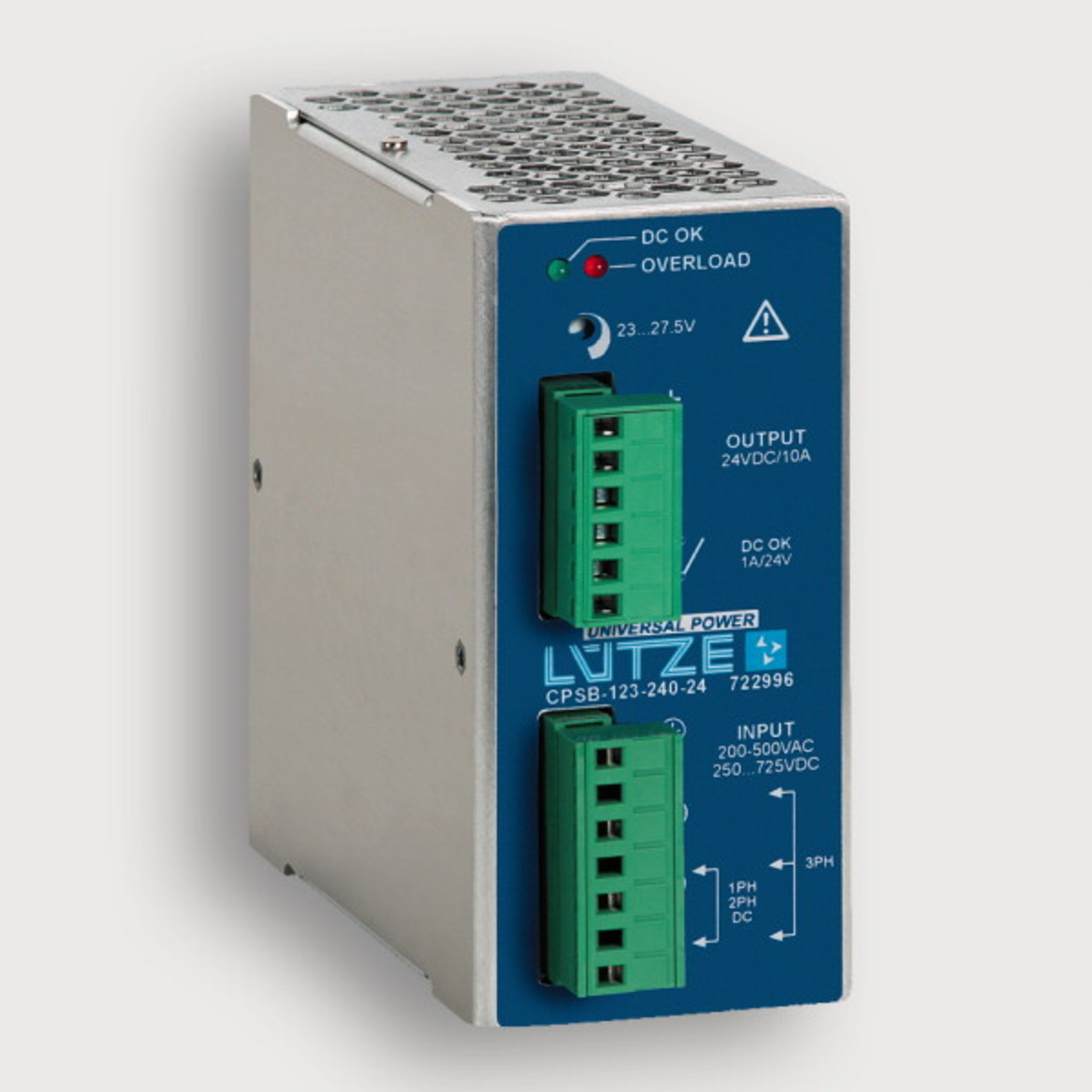

722996 - regulated, 240 W

722996 - regulated, 240 W

Part No.
722996
Type
CPSB-123-240-24
Article on stock
PU
1 piece
Power supply
regulated, 240 W

Description

Switchmode power supplies, PFC, 1/2/3-phase
Input: wide-range input AC 187–550 V, DC 250–725 V (UL: DC 300–500 V)
Output: 24 V, adjustable

Technical Data

Input

Number of phases
3
Rated voltage UN
AC 200–500 V
Operation voltage range
AC 187–550 V / DC 250–725 V (UL: DC 300–500 V)
Line frequency
47–63 Hz
Rated current IN
1-/2-phase: 2.2 A @ AC 220 V / 1.1 A @ AC 500 V, 3-phase: 1.5 A @ AC 220 V / 0.8 A @ AC 500 V
Inrush current
<20 A @ AC 230 V / <40 A @ AC 500 V
External fuse
Mini-circuit breaker: D 4 A, C 6 A / safety fuse: T 6.3 A (required)
Power factor correction P.F.C.
>0.6 @ 230 V, >0.5 @ 400 V

Output

Rated voltage UN
DC24V
Rated current IN
10 A
Max. output current
>15 A, 5 s
Short-circuit current
38 A, 5 s
Heat dissipation
<24 W @ AC 230 V, <21 W @ AC 400 V
Setting range Uout min./Uout max.
23-27,5 V
Load regulation
<1 %
Rise time
14 ms (5–95 %) @ 400 V
Ripple and Noise
<100 mV pp
Hold up time
>15 ms @ AC 230 V / >100 ms @ AC 500 V
Status indication DC ON LED green
≥21.6 V
Status indication DC LOW LED red
≤21.6 V
Parallel / redundant mode
yes/via external decoupling diode e.g. 722987
Efficiency
>91 % @ AC 230 V / >92 % @ AC 400 V
Over voltage protection
>DC 33 V (UA=24 V)
Rated over load protection
yes
Short circuit
Hiccup Mode

Monitoring

DC ON Control (Rdy)
N/O contact
Switching voltage
DC 30 V
Switching current
DC 1 A
Switching capacity
30 W
Isolation voltage
AC 500 V

General

Insulation voltage input / output
DC 4.2 kV
Insulation voltage input / ground
DC 2.2 kV
Insulation voltage output / ground
DC 750 V
Derating
>50 °C: -6 W/°C
Operation temperature range
-20 °C ... +60 °C (over-temperature protection)
Storage temperature range
-25°C…85°C
Relative air humidity
20 – 90 % RH, not condensing
Cooling
Air convection, 50 mm distance top/bottom, 20 mm side
Housing material
Aluminum
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Application height
2000 m
Installation position
vertical
Shock resistance
30 g 6 ms, 20 g 11 ms, 3 shocks/direction, 18 shocks in total, IEC60068-2-27: 2008
Vibration resistance
5 – 17.8 Hz: ±1.6 mm, 17.8 – 500 Hz: 2 g 2 hours/axes X,Y,Z, IEC 60068-2-6: 2007
Protection class
IP20 (IEC 529 / EN 60529)
Protection class
I
Over voltage category
III
Degree of polution
2
Weight
0,65 kg/piece
Connection type
  • Screw terminal
  • 0.20 mm2 – 2.5 mm2
  • AWG 30 – AWG 12
  • plug-in
Dimensions (w × h × d)
54×130×115 mm
Certifications
cULus (E249179)
Standards
  • IEC 60950
  • EN 60950
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61000-4-2/3/4/5/6/11
  • EN 61000-5-5
  • EN 55011
MTBF
>500000 h: SN29500 / >150000 h: MIL HDBK 217F
PU
1 piece
