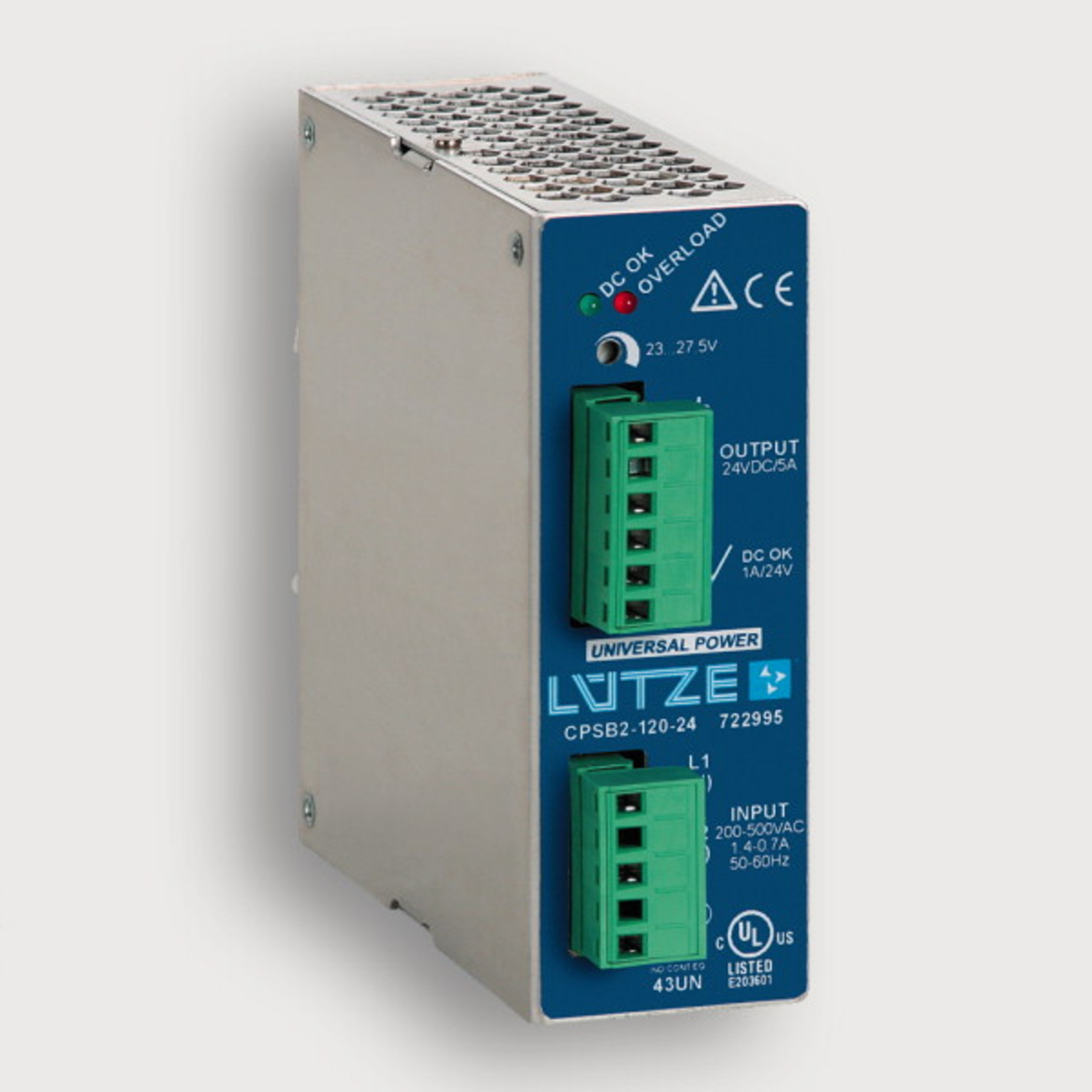

722995 - regulated, 120 W

722995 - regulated, 120 W

Part No.
722995
Type
CPSB2-120-24
Article on stock
PU
1 piece
Power supply
regulated, 120 W

Description

Switchmode power supplies, PFC, 1/2-phase
Input: wide-range input AC 187–550 V, DC 270–725 V
Output: 24 V, adjustable

Technical Data

Input

Number of phases
2
Rated voltage UN
AC 200–500 V
Operation voltage range
AC 187–550 V / DC 270–725 V
Line frequency
47–63 Hz
Rated current IN
1.4 A @ AC 200 V / 0.7 A @ AC 500 V
Inrush current
<20 A @ AC 230 V / <40 A @ AC 500 V
External fuse
Mini-circuit breaker: D 6 A, C 6 A / safety fuse: T 4 A (required)
Power factor correction P.F.C.
>0.55

Output

Rated voltage UN
DC24V
Rated current IN
5 A
Max. output current
>7.5 A, >30 s
Short-circuit current
>14 A, 400 ms
Heat dissipation
<18 W
Setting range Uout min./Uout max.
23-27,5 V
Load regulation
<1 %
Rise time
9 ms (5–95 %) @ 400 V
Ripple and Noise
<100 mV pp
Hold up time
>20 ms @ AC 120 V / >80 ms @ AC 230 V
Status indication DC ON LED green
≥21.6 V
Status indication DC LOW LED red
Iout >110 % IN
Parallel / redundant mode
yes/via external decoupling diode e.g. 722987
Efficiency
>86 %
Over voltage protection
>DC 33 V (UA=24 V)
Rated over load protection
yes
Short circuit
Hiccup Mode

Monitoring

DC ON Control (Rdy)
N/O contact
Switching voltage
AC/DC 300 V / DC 150 V
Switching current
AC/DC 1 A
Switching capacity
300 VA / 30 W
Isolation voltage
AC 500 V

General

Insulation voltage input / output
DC 4.2 kV
Insulation voltage input / ground
DC 2.2 kV
Insulation voltage output / ground
DC 750 V
Derating
>45 °C: -4 W/°C
Operation temperature range
-20 °C … +70 °C (overtemperature protection)
Storage temperature range
-25°C…85°C
Relative air humidity
20 – 90 % RH, not condensing
Cooling
Air convection, 50 mm distance top/bottom, 20 mm side
Housing material
Aluminum
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Application height
2000 m
Installation position
vertical
Shock resistance
30 g 6 ms, 20 g 11 ms, 3 shocks/direction, 18 shocks in total, IEC60068-2-27: 2008
Vibration resistance
5 – 17.8 Hz: ±1.6 mm, 17.8 – 500 Hz: 2 g 2 hours/axes X,Y,Z, IEC 60068-2-6: 2007
Protection class
IP20 (IEC 529 / EN 60529)
Protection class
I
Over voltage category
III
Degree of polution
2
Weight
0,4 kg/piece
Connection type
  • Screw terminal
  • 0.20 mm2 – 2.5 mm2
  • AWG 24 – AWG 12
  • plug-in
Dimensions (w × h × d)
40×130×115 mm
Certifications
cULus (E249179)
Standards
  • IEC 950
  • EN 60950
  • UL 60950
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61000-4-2/3/4/5/6/11
MTBF
>500000 h: SN29500 / >150000 h: MIL HDBK 217F
PU
1 piece
