Part No.
722814
Type
CPSB3-2400-24
Article on stock
PU
1 piece

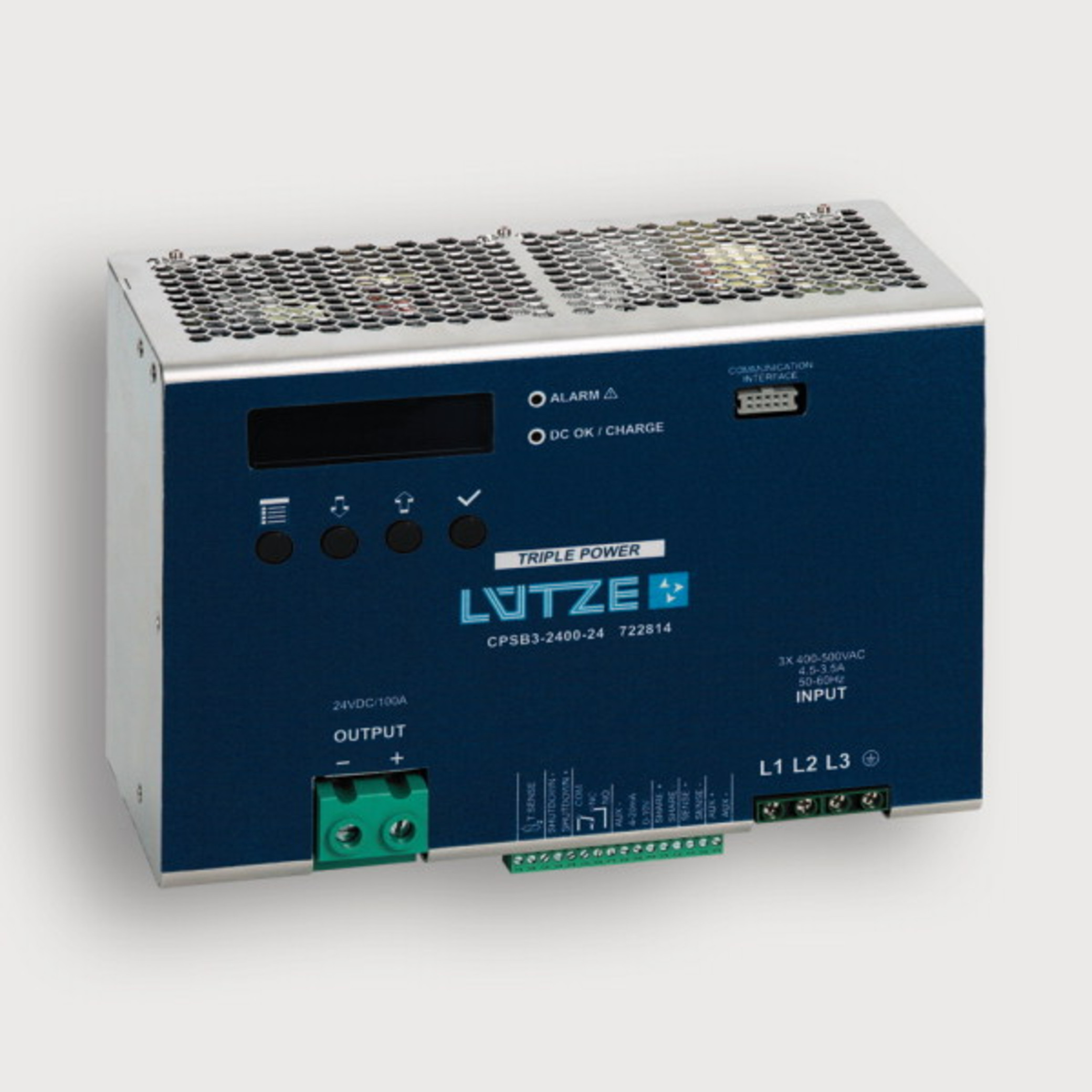

Power supply
regulated, 2400 W

Description

Switchmode power supply, PFC, 3-phase
Input: Wide range input AC 340 - 550 V
Output: DC 24 V, 100 A

Technical Data

Input

Input protection
  • Surge protection according to VDE 0160, over/undervoltage (auto restart)
  • Phase monitoring (reduced output power): PFC error
Number of phases
3
Rated voltage UN
3 × AC 400–500 V
Operation voltage range
AC 340–550 V / DC 520–750 V
Line frequency
47–63 Hz
Rated current IN
4.5 A @ AC 400 V / 3.5 A @ AC 500 V
Inrush current
< 10 A (active inrush current limitation)
External fuse
Mini-circuit breaker: 3 × C 10 A (required)
Power factor correction P.F.C.
>0.92

Output

Rated voltage UN
DC24V
Rated current IN
100 A
Max. output current
>150 A, 5 s @ Uout > 90 %
Short-circuit current
150 A, 5 s
Heat dissipation
<200 W
Setting range Uout min./Uout max.
DC 11.5–29 V
Load regulation
<1 %
Rise time
< 4.5 S
Ripple and Noise
<200 mV pp
Hold up time
>10 ms @ AC 400 V / >10 ms @ AC 500 V
Status indication DC ON LED green
alphanumeric display
Status indication DC LOW LED red
alphanumeric display
Parallel / redundant mode
max. 4 devices
Efficiency
>92 %
Over voltage protection
>DC 33 V (UA=24 V)
Short circuit
Hiccup Mode / current limit / constant current

Monitoring

DC ON Control (Rdy)
  • Relay, N/O contact active, adjustable, DCok: 90–110 % Uset, ACok: acc. input voltage range, overload
  • Overtemperature range, charging complete
Switching capacity
AC/DC 30 V, 1 A, 30 W
Isolation voltage
AC 500 V
Output current
galvanically isolated: 0–10 V and 4–20 mA

General

Insulation voltage input / output
DC 4.2 kV
Insulation voltage input / ground
DC 2.2 kV
Insulation voltage output / ground
DC 750 V
Derating
>50 °C: -60 W/°C
Operation temperature range
-20 °C … +60 °C (Derating)
Storage temperature range
-25°C…85°C
Cooling
Air convection, forced cooling >45°C, 80 mm distance top/bottom, 10 mm side
Housing material
Aluminum
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Installation position
vertical
Shock resistance
30g
Vibration resistance
5 – 17.8 Hz: ±1.6 mm, 17.8 – 500 Hz: 2 g 2 hours/axes X,Y,Z, IEC 60068-2-6: 2007
Protection class
IP20 (IEC 529 / EN 60529)
Protection class
I
Over voltage category
III
Degree of polution
2
Weight
2,8 kg/piece
Connection type
  • Screw terminal
  • Input
  • 0.20 mm2 – 4.0 mm2
  • Output
  • 0.20 mm2 – 35.0 mm2
  • Auxiliary
  • 0.20 mm2 – 1.5 mm2
Dimensions (w × h × d)
233×158×102 mm
Certifications
cULus (E249179)
Standards
  • UL 508
  • IEC 950
  • EN 60950
  • EN 55011
  • EN 61000-4-5
  • Surge immunity level IV
  • VDE 0160
  • EN 61000-4-2/3/4/5/6/11
MTBF
>500000 h: SN29500 / >150000 h: MIL HDBK 217F
PU
1 piece

Interface

User Interface
LCD display 16 × 2 character, multi language, 4 keys (command and navigation)
Auxiliary voltage output
galvanically isolated DC 12 V, 100 mA
NTC
Temperature-controlled battery charging (mandatory)
Range of functions
The new power compact series provides a number of additional adjustment options via function keys. The selected functions are shown on a display. In addition, the current output voltage and current are displayed for normal operation.
Input protection
– Active Surge suppressor and inrush limiter (ASSIL) as protection against overvoltages according to VDE 0160
– PFC error monitoring
– Phase monitoring with automatic reduction of the output power
– Automatic start/restart system for over- and undervoltages
Output protection
– Adjustable current limiting between 0.1 IN and IN
– Hiccup autoreset based on current limiting or maximum output voltage (150%)
Status display and signal
– In addition to an LED for “DC OK” and error displays, the devices have the following analog outputs 0–10 V and 4–20 mA as direct function of the load current
– Programmable relay contact with the functions
Output voltage/current,
Overload,
Overtemperature
Additional functions
– Temperature-compensated battery charging function
–Display and compensation of the voltage drop for long cables
–Remote On/Off of the output voltage
–DC 12 V auxiliary voltage
–Monitoring and control interface based on RS232 (optional)
–Integrierte O-Ring-Diode
– Load sharing in parallel operation
–Load current sharing
Dimensions
PIN assignment
Serial operation
Parallel/redundant mode
Charging operation
Output voltage in 0–10 V
Output voltage in 4–20 mA
