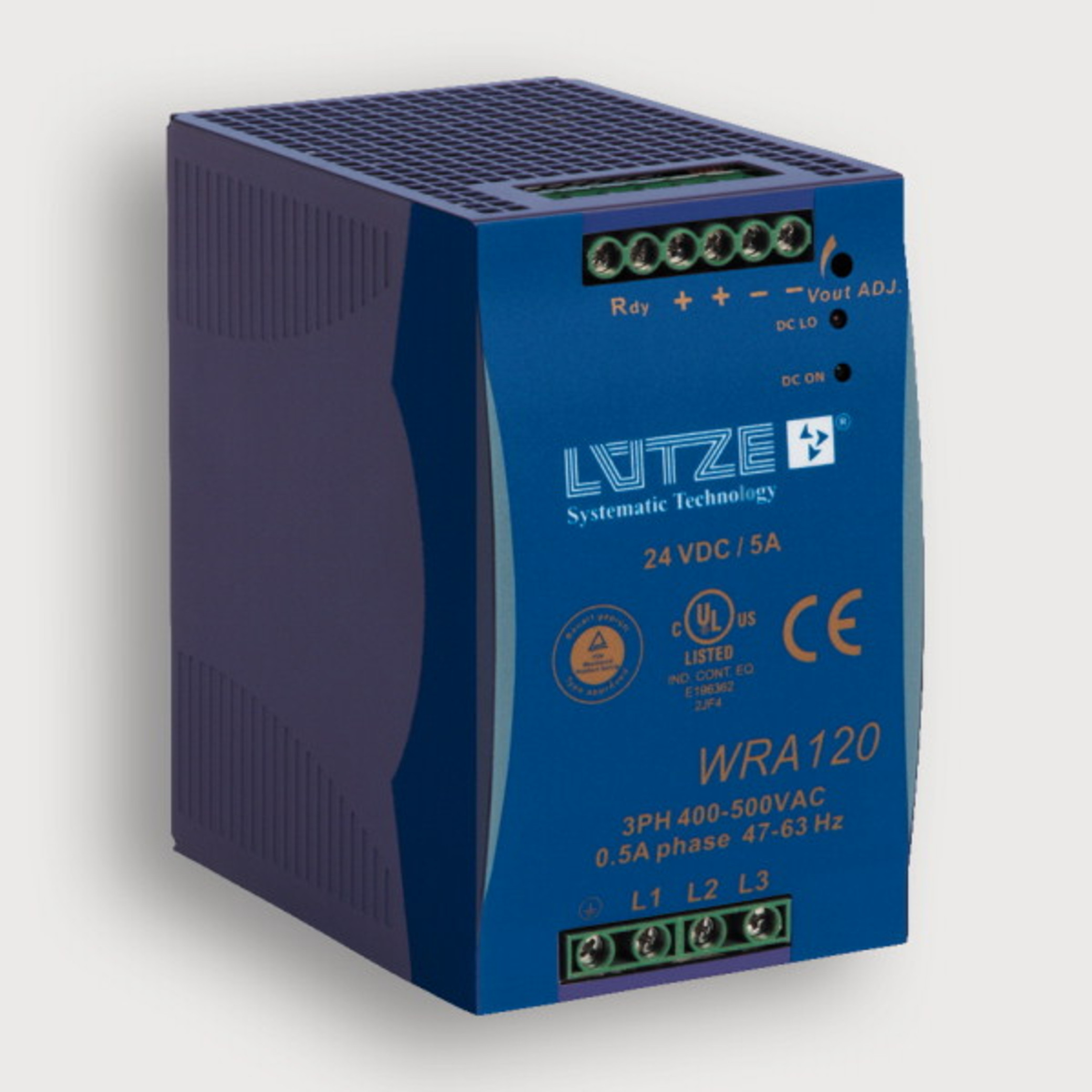

722803 - regulated, 120 W, 3-phase

722803 - regulated, 120 W, 3-phase

Part No.
722803
Type
WRA120-24
Article available at short notice
PU
1 piece
Power supply
regulated, 120 W, 3-phase

Description

Switchmode power supply, PFC, 3-phase
Input: wide-range input AC 340–576 V, DC 480–820 V
Output: 24 V, adjustable

Technical Data

Input

Number of phases
3
Rated voltage UN
3 × AC 380–480 V
Operation voltage range
3 × AC 340–575 V / 3 × DC 480–820 V
Line frequency
47–63 Hz
Rated current IN
0.5 A @ AC 380 V / 0.35 A @ AC 500 V
Inrush current
10 A
Internal fuse
3 × T2, 0 A/AC 600 V
External fuse
Mini-circuit breaker: 3 × B 6 A
Power factor correction P.F.C.
0.6

Output

Rated voltage UN
DC24V
Rated current IN
5 A
Heat dissipation
16 A @ AC 380 V
Setting range Uout min./Uout max.
22.5/28.5 V
Accuracy
1 %
Load regulation
±1 %
Line regulation
±1 %
Rise time
1 s
Temperature coefficient
±0.03 % / °C
Ripple and Noise
100 mV
Hold up time
min. 20 ms
Status indication DC ON LED green
≥17.6–19.4 V
Status indication DC LOW LED red
≤17.6–19.4 V
Parallel / redundant mode
max. 2 devices / via external decoupling diodes e.g. 722987
Efficiency
89 %
Over voltage protection
125–137 %
Rated over load protection
  • 115–135 %
  • Temperature: Deactivation at 100–110°C and automatic activation after cooling off
Short circuit
Hiccup Mode

Monitoring

DC ON Control (Rdy)
N/O contact
Switching voltage
DC 60 V
Switching current
max. 300 mA
Isolation voltage
DC 500 V

General

Switching frequency
approx. 70 kHz
Insulation voltage input / output
DC 4.2 kV
Insulation voltage input / ground
DC 2.1 kV
Insulation voltage output / ground
DC 700 V
Insulation resistance at DC 500 V
100 M
Derating
Capacity: -2.5 %/°C starting at +61 °C
Operation temperature range
-25 °C … +71 °C (Derating)
Storage temperature range
-25°C…85°C
Relative air humidity
20 – 90 % RH, not condensing
Cooling
Air convection, 25 mm clearance all-round
Housing material
Metal
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Application height
3000 m
Installation position
vertical
Protection class
IP20
Protection class
I
Over voltage category
II
Degree of polution
2
Weight
0,8 kg/piece
Connection type
  • Screw terminal
  • 0.20 mm2 – 4.0 mm2
  • max. 0.62 Nm
Dimensions (w × h × d)
74,3×123,6×118,8 mm
Certifications
cULus (E249179)
Standards
  • UL 60950-1
  • EN 60950-1
  • EN 61000-6-3
  • EN 55022 Class B
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-2
  • EN 55024 Class I
MTBF
559000 h
PU
1 piece
