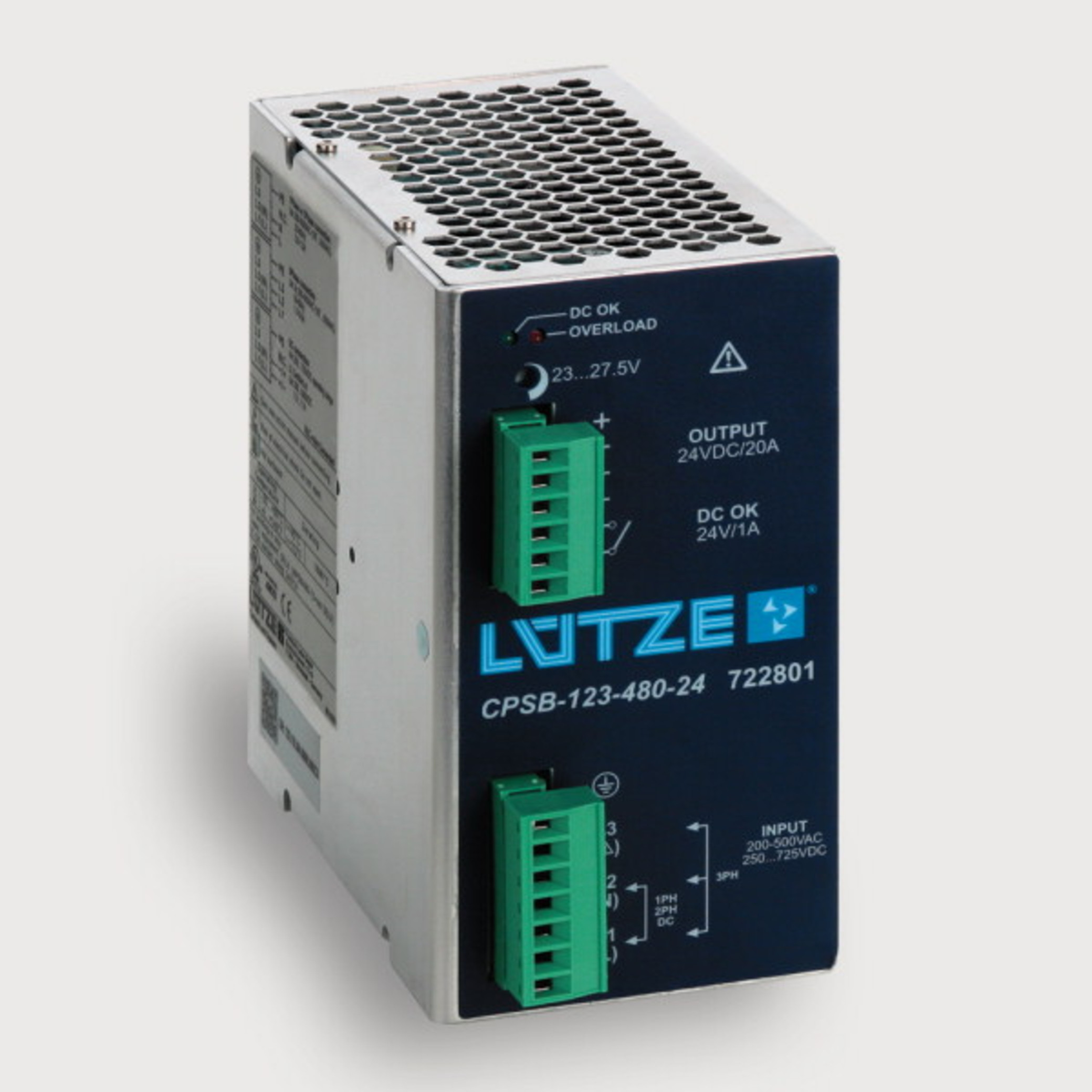

722801 - regulated, 480 W

722801 - regulated, 480 W

Part No.
722801
Type
CPSB-123-480-24
Article on stock
PU
1 piece
Power supply
regulated, 480 W

Description

Switchmode power supplies, PFC, 1/2/3-phase
Input: wide-range input AC 187–550 V, DC 250–725 V (UL: DC 300–500 V)
Output: 24 V, adjustable

Technical Data

Input

Number of phases
3
Rated voltage UN
One-, two- and three-phase AC 200-500 V
Operation voltage range
AC 187–550 V / DC 250–725 V (UL: DC 300–500 V)
Line frequency
47–63 Hz
Rated current IN
1-/2-phase: 2.9 A @ AC 200 V / 1.3 A @ AC 500 V, 3-phase: 1.8 A @ AC 200 V / 0.8 A @ AC 500 V
Inrush current
Ui= AC 230 V: <20 A / Ui= AC 400 V: <40 A
External fuse
Mini-circuit breaker: C 6 A, or D 4 A (required)
Power factor correction P.F.C.
<0.95 @ AC 230 V, <0.92 @ AC 400 V

Output

Rated voltage UN
DC24V
Rated current IN
20 A
Max. output current
28 A, 5 s
Short-circuit current
50 A
Heat dissipation
<21 W
Setting range Uout min./Uout max.
23-27,5 V
Load regulation
<1 %
Ripple and Noise
<100 mV pp
Hold up time
>20 ms
Status indication DC ON LED green
≥21.6 V
Status indication DC LOW LED red
Iout >1.1 IN
Parallel / redundant mode
yes/via external decoupling diode
Efficiency
>92 %
Overtemperature protection
yes
Over voltage protection
>DC 33 V (UA=24 V)
Short circuit
Hiccup Mode

Monitoring

DC ON Control (Rdy)
N/O contact
Switching voltage
AC/DC 30 V
Switching current
AC/DC 1 A
Switching capacity
30 VA / 30 W
Isolation voltage
AC 500 V

General

Insulation voltage input / output
DC 4.2 kV
Insulation voltage input / ground
DC 2.2 kV
Insulation voltage output / ground
DC 750 V
Derating
>45 °C: -16 W/°C
Operation temperature range
-20 °C … +60 °C (Derating)
Storage temperature range
-25°C…85°C
Cooling
Air convection, 50 mm distance top/bottom, 20 mm side
Housing material
Aluminum
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Installation position
vertical
Shock resistance
30 g 6 ms, 20 g 11 ms, 3 shocks/direction, 18 shocks in total, IEC60068-2-27: 2008
Vibration resistance
5 – 17.8 Hz: ±1.6 mm, 17.8 – 500 Hz: 2 g 2 hours/axes X,Y,Z, IEC 60068-2-6: 2007
Protection class
IP20 (IEC 529 / EN 60529)
Protection class
I
Over voltage category
III
Degree of polution
2
Weight
1 kg/piece
Connection type
  • Screw terminal
  • 0.20 mm2 – 2.5 mm2
  • AWG 24 – AWG 12
  • plug-in
Dimensions (w × h × d)
73×125×140 mm
Certifications
cULus (E249179)
Standards
  • UL 508C
  • IEC 950
  • EN 60950
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 55011
  • EN 61000-4-2
  • EN 61000-4-2/3/4/5/6/11
MTBF
>500000 h: SN29500 / >150000 h: MIL HDBK 217F
PU
1 piece
