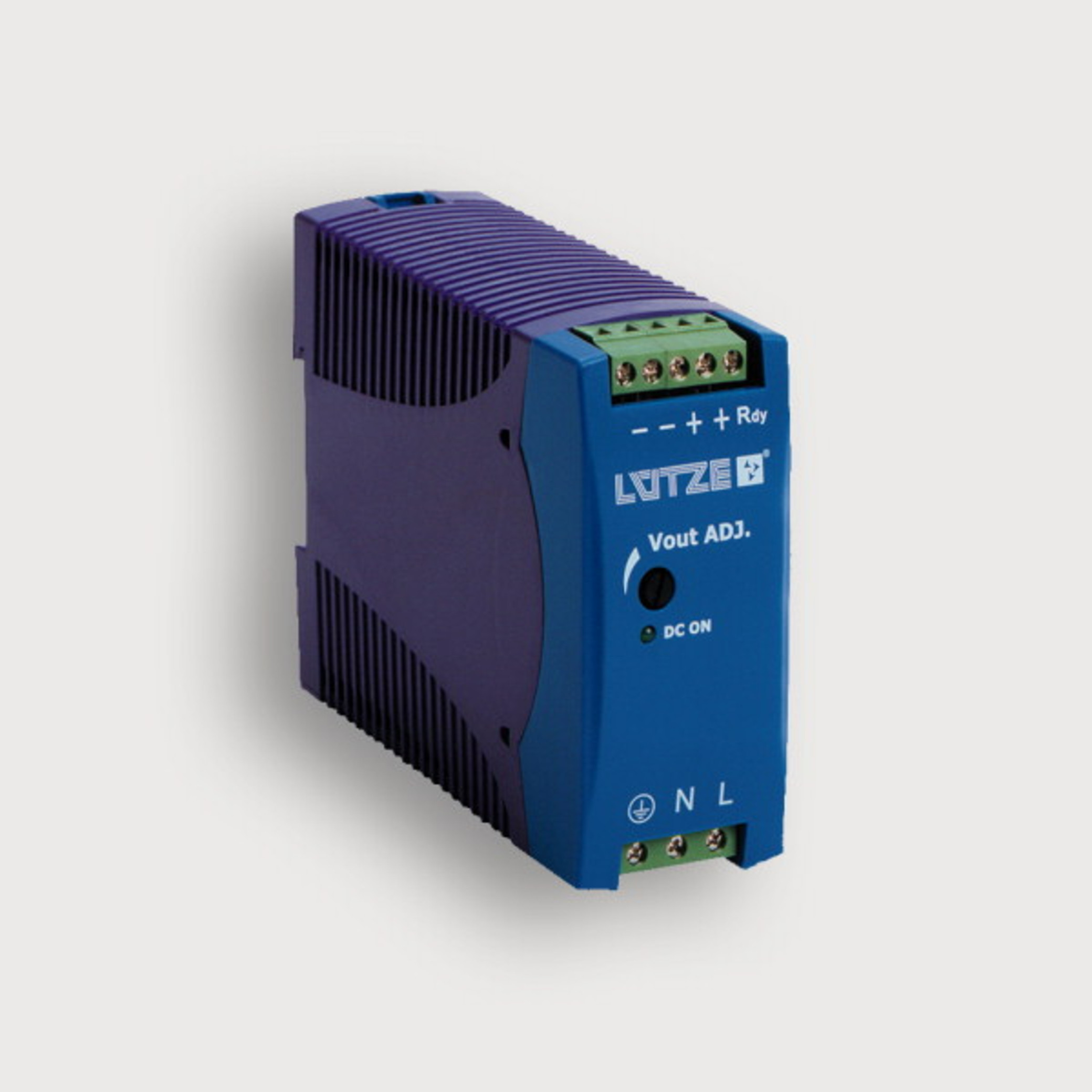

722763 - regulated, 30 W

722763 - regulated, 30 W

Part No.
722763
Type
DRA30-5A
Article on stock
PU
1 piece
Power supply
regulated, 30 W

Description

Switchmode power supply, Single-phase, Class 2
Input: wide-range input AC 85–264 V, DC 90–375 V
Output: 5 V, adjustable

Technical Data

Input

Number of phases
1
Rated voltage UN
AC 100–240 V
Operation voltage range
AC 85–264 V / DC 90–375 V
Line frequency
47–63 Hz
Rated current IN
360 mA @ AC 115 V / 190 mA @ AC 230 V
Inrush current
20 A @ AC 115 V / 40 A @ AC 230 V
Internal fuse
2 A Typ-T AC 250 V
External fuse
Mini-circuit breaker: B 4 A

Output

Rated voltage UN
DC5V
Rated current IN
6 A
Heat dissipation
8.5 W @ AC 230 V
Setting range Uout min./Uout max.
5.0-5.5 V
Accuracy
±1 %
Load regulation
±0.5 %
Line regulation
±0.5 %
Rise time
1 s
Temperature coefficient
±0.03 % / °C
Ripple and Noise
<50 mV
Hold up time
20 ms @ 115 V / 30 ms @ 230 V
Status indication DC ON LED green
≥4 V
Parallel / redundant mode
max. 2 devices / via external decoupling diodes e.g. 722987
Efficiency
79 %
Over voltage protection
125–137 %
Rated over load protection
120–136 %
Short circuit
Hiccup Mode

Monitoring

DC ON Control (Rdy)
Open Collector
Switching voltage
DC 24 V
Switching current
≤35 mA
Isolation voltage
none

General

Switching frequency
approx. 80 kHz
Insulation voltage input / output
DC 4.2 kV
Insulation voltage input / ground
DC 2.1 kV
Insulation voltage output / ground
DC 700 V
Insulation resistance at DC 500 V
100 M
Derating
Capacity: -2.5 %/°C starting at 60 °C
Operation temperature range
-25 °C … +70 °C (Derating)
Storage temperature range
-25°C…85°C
Relative air humidity
20 – 95 % RH, not condensing
Cooling
Air convection, 25 mm clearance all-round
Housing material
Plastic
Mounting
  • DIN rail mountable TS35
  • (EN 60715)
Application height
2000 m
Installation position
vertical
Protection class
IP20
Protection class
I
Over voltage category
II
Degree of polution
2
Weight
0,29 kg/piece
Connection type
  • Screw terminal
  • 0.20 mm2 – 2.5 mm2
  • max. 0.56 Nm
Dimensions (w × h × d)
40,5×90×115 mm
Certifications
cULus (E249179)
Standards
  • UL 60950-1
  • UL 1310 Class 2
  • EN 60950-1
  • EN 61000-6-3
  • EN 55022 Class B
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55024
  • EN 61000-6-2
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-8
  • EN 61000-4-11
MTBF
551000 h
PU
1 piece
