A3323/004 - LÜTZE SILFLEX® Tray-ER TPE with UL/TC-ER/WTTC/MTW/CE Approvals

A3323/004 - LÜTZE SILFLEX® Tray-ER TPE with UL/TC-ER/WTTC/MTW/CE Approvals

Part No.
A3323/004
Type
SI TRAY-ER TPE 4×AWG3/0

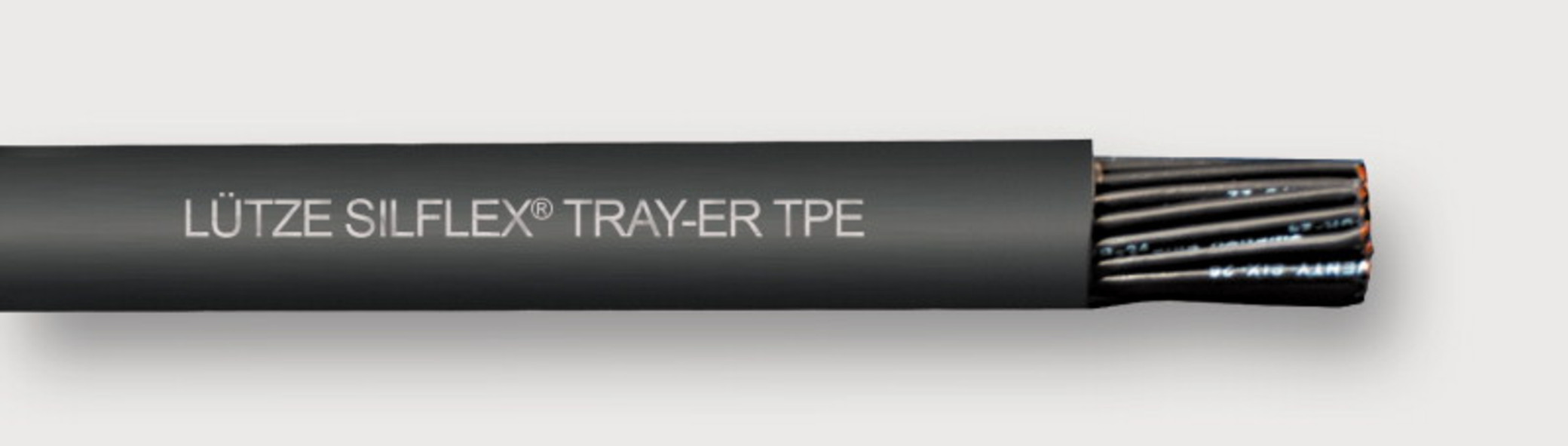

LÜTZE SILFLEX® Tray-ER TPE
with UL/TC-ER/WTTC/MTW/CE Approvals
Flexible Motor Cable · Unshielded
Symbols

Use/Application/Characteristics

Application
  • Multi-conductor cable for tray applications, with exposed run (open wiring) approval
  • Compliant with NFPA 79 for machine tool wiring
  • TC-ER for use with cable trays without conduit, which can reduce material and labor costs
  • Metal cutting equipment, machine tools, machine and plant construction, HVAC technology, assembly and production lines, and other industrial applications
  • WTTC – wind turbine tray cable rating for use in wind power generation
  • Dry, damp and wet locations
Characteristics
  • Flexible design with Nylon for crush impact resistance per UL 1277 and easy installation
  • Specially formulated TPE jacket for superior oil resistance
  • Cutting oil resistant – mineral & bio/vegetable based oil
    *specially tested with plant based cutting oil
  • Non-wicking fillers
  • Sunlight resistant
  • Direct burial
  • UL Type TC-Exposed Run
  • Talc free
  • Silicone free

Technical Data

Construction

Description
SILFLEX® TRAY-ER TPE
Number of conductors/cross-section
4×3/0
Jacket material
TPE
Jacket color
black RAL 9005
Outer Ø
45,6 mm
Outer Ø
1,794 inch
Weight
2982 Lbs/Mft
Cu-Index
2156 Lbs/Mft

Element 1

Element construction
3/0/4C
Conductor construction
3/0 (1665/30)
Conductor
  • AWG conductor
  • CU-wire bare
Conductor category
fine wire
Conductor marking
  • black
  • with white number print
  • green/yellow
Conductor insulation
  • PVC/Nylon
  • THHN – THWN

overall construction

Jacket characteristics
  • Oil resistant
  • mineral oil-resistant
  • bio-oil-resistant
  • UV resistant (normal lighting conditions)
  • Silicone-free

Technical data

Rated voltage UN
  • 600 V TC-ER 90C
  • 600 V MTW 90C
  • 1000 V WTTC 90C
  • 600 V UL AWM 105 °C
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
4×D

Element 1

Element construction
3/0/4C

Approvals/Standards

Approvals
  • TC-ER
  • cURus
  • cULus
  • UL Type MTW or DP-1
  • WTTC
  • Class 1 Div. 2 per NEC
  • Art. 336, 392, 501
  • cUL TC
  • CIC FT4
  • UL 1277
  • UL 509 BUS Drop pending
Conformity
  • CE
  • REACH
  • RoHS
Oil resistant according to
  • Oil Res I
  • Oil Res II

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
