A3171604 - LÜTZE SILFLEX® M (C) TPE POWER TRAY CABLE Flexible Motor Cable for Allen-Bradley and other systems

A3171604 - LÜTZE SILFLEX® M (C) TPE POWER TRAY CABLE Flexible Motor Cable for Allen-Bradley and other systems

Part No.
A3171604
Type
SI M(C)TPE SE(4GAWG16+(2×AWG18))UL 0,6/1KV OR

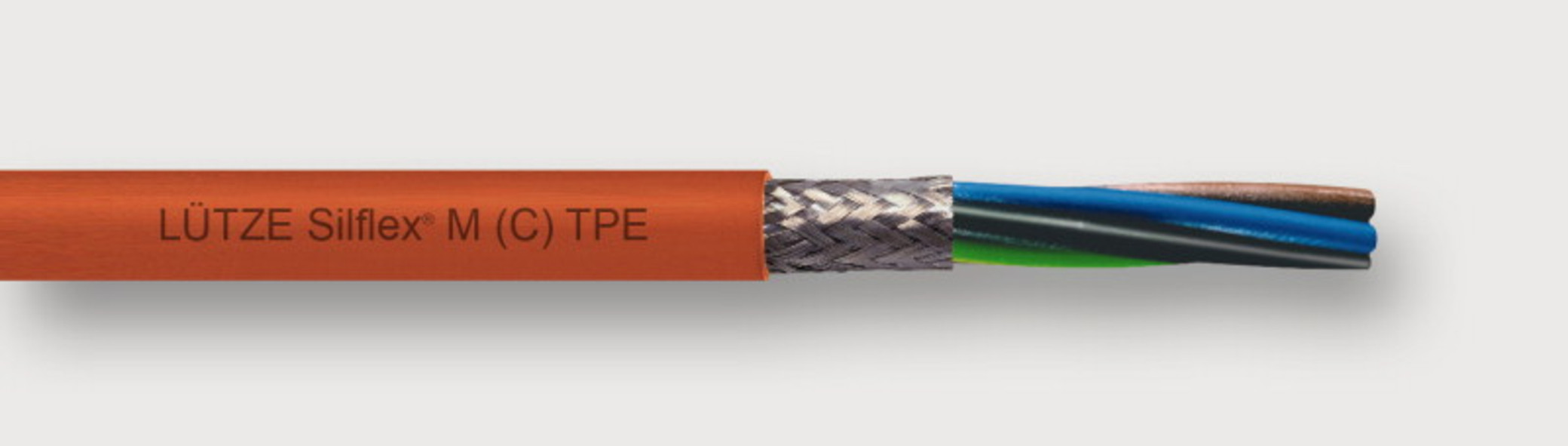

LÜTZE SILFLEX® M (C) TPE POWER TRAY CABLE
Flexible Motor Cable for Allen-Bradley and other systems
TPE Motor cables · shielded · static
Symbols

Use/Application/Characteristics

Application
  • Shielded multi-conductor cable for motor and servo motor applications
  • Cable design for harsh industrial environments and operating conditions with high noise levels
  • Improved insulation design with additional conductor stress relief layer as a power distortion suppressant
  • Compliant with NFPA 79 for machine tool wiring
  • TC-ER for use with cable trays without conduit, which can reduce material and labor costs
  • UL Type 1000V Flexible Motor Supply Cable for Motor/Power applications
  • Dry, damp and wet locations
Characteristics
  • Conductor stress relief layer prevents premature cable failure and reduces corona effects, increasing reliability and lifetime
  • Flexible design with Nylon for crush impact resistance per UL 1277 and easy installation
  • Very round cable with small diameter
  • Specially formulated TPE jacket for superior oil resistance per Oil Res I and II
  • Resistant to many mineral and vegetable based cutting oils
  • Non-wicking fillers
  • Sunlight resistant
  • Direct burial
  • UL Type TC-Exposed Run
  • Talc free and Silicone free

Technical Data

Construction

Description
SILFLEX® M (C) TPE
Number of conductors/cross-section
(4×AWG16+1×2×AWG18)
Jacket material
TPE
Jacket color
orange RAL 2003
Outer Ø
12,1 mm
Outer Ø
0,477 inch
Weight
161 Lbs/Mft
Cu-Index
72 Lbs/Mft

Element 1

Element construction
AWG16/4C
Conductor construction
AWG 16 (26/30)
Conductor
  • AWG conductor
  • CU-wire bare
Conductor category
fine wire
Conductor marking
  • brown
  • black
  • blue
  • green/yellow
Conductor insulation
PVC/Nylon

Element 2

Element construction
AWG18/1TSP
Conductor construction
AWG 18
Conductor
  • AWG conductor
  • CU-wire bare
Conductor category
fine wire
Conductor marking
  • black
  • white
Conductor insulation
PVC/Nylon
Stranding
conductors stranded in pairs

overall construction

Overall shield
  • Braid shield
  • Tinned copper wires
  • optical cover approx. 85%
Jacket characteristics
  • Oil resistant
  • mineral oil-resistant
  • bio-oil-resistant
  • Silicone-free

Technical data

Rated voltage UN
  • 600 V UL TC
  • 600 V UL MTW
  • 1000 V WTTC
  • 1000 V Flexible Motor Supply
  • 600 V UL AWM 105 °C
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
6×D

Element 1

Element construction
AWG16/4C

Element 2

Element construction
AWG18/1TSP

Approvals/Standards

Approvals
  • cULus
  • TC-ER
  • UL MTW
  • WTTC
  • Class 1 Div. 2 per NEC
  • Art. 336, 392, 501
  • cUL TC
  • CIC FT4
  • UL 1277
  • cURus
Conformity
  • CE
  • RoHS
  • REACH
Oil resistant according to
  • Oil Res I
  • Oil Res II

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
