A2200203 - LUTZE DRIVEFLEX® 3 SYMMETRICAL 1000 V with Three Symmetrical Grounds and UL 1 kV Voltage Rating

A2200203 - LUTZE DRIVEFLEX® 3 SYMMETRICAL 1000 V with Three Symmetrical Grounds and UL 1 kV Voltage Rating

Part No.
A2200203
Type
VFD XLPE 3 (C) PVC (3×AWG2+3×AWG10)

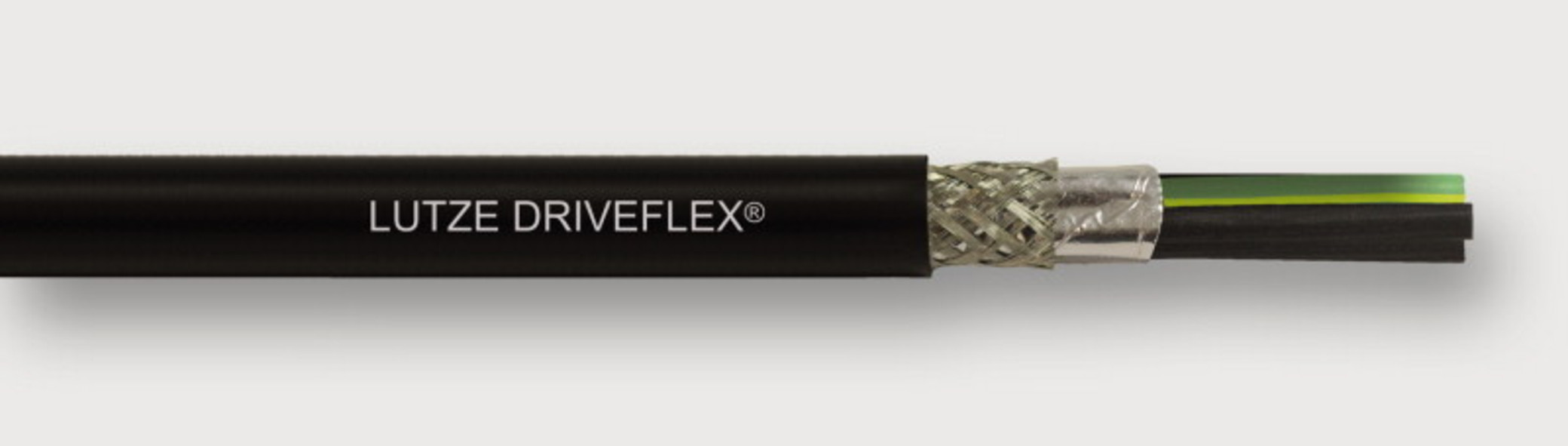

LUTZE DRIVEFLEX® 3 SYMMETRICAL 1000 V
with Three Symmetrical Grounds and UL 1 kV Voltage Rating

Flexible Composite VFD, Servo & Motor Supply Cable · Shielded

Symbols

Use/Application/Characteristics

Application
  • Shielded VFD and Motor cable to connect power from drives to motors
  • Three insulated symmetrical grounds design helps to reduce stray currents
  • Cable design for harsh industrial environments and operating conditions with high noise levels
  • 1 kV rated XLPE insulation with low capacitance, ideal for applications with high voltage spikes and long cable runs
  • Compliant with NFPA 79 for wiring of industrial machinery
  • TC-ER for use with cable trays without conduit, which can reduce material and labor costs
  • WTTC – wind turbine tray cable rating for use in wind power generation
  • Dry, damp or wet conditions
Characteristics
  • Flexible XLPE conductors
  • Three symmetrical grounds (PE)
  • Non-wicking fillers
  • Effective dual layer shield for best EMC results
  • Specially formulated jacket for oil resistance and easy strip design
  • Low capacitance cable
  • Sunlight resistant
  • Direct burial
  • UL Type TC-Exposed Run
  • Talc free and silicone free

Technical Data

Construction

Description
DRIVEFLEX® 3 SYMMETRICAL GROUNDS
Number of conductors/cross-section
(3×AWG2+3×AWG10)
Jacket material
PVC
Jacket color
black RAL 9005
Outer Ø
29,3 mm
Outer Ø
1,155 inches
Weight
1230 Lbs/Mft
Cu-Index
875 Lbs/Mft

Element 1

Element construction
AWG2/3C
Conductor construction
511 strands
Conductor
  • AWG conductor
  • CU-wire tin-plated
Conductor category
fine wire
Conductor marking
  • black
  • with white number print
Conductor insulation
  • XLPE
  • XHHW-2

Element 2

Element construction
AWG10/3C
Conductor construction
80 strands
Conductor
  • AWG conductor
  • CU-wire tin-plated
Conductor category
fine wire
Conductor marking
green/yellow
Conductor insulation
  • XLPE
  • 3C XHHW-2 (Ground/PEs)

overall construction

Drain wire
CU-wire tin-plated
Overall shield
  • Foil shield
  • Aluminium laminate
  • Braid shield
  • Tinned copper wires
  • optical cover approx. 80%
Jacket characteristics
  • Oil resistant
  • Silicone-free

Technical data

Rated voltage UN
  • 600 V TC-ER
  • 1000 V Flexible VFD servo cable 90C
  • 1000 V WTTC
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
7.5×D

Element 1

Element construction
AWG2/3C

Element 2

Element construction
AWG10/3C

Approvals/Standards

Approvals
  • cULus
  • WTTC
  • TC-ER
  • cUL TC
  • CIC FT4
  • Class 1 Div. 2 per NEC
  • Art. 336, 392, 501
  • UL 1277
  • UL 2277
  • Wet/Dry
  • P-07-KA130021-MSHA
Conformity
  • CE
  • RoHS
  • REACH
Oil resistant according to
Oil Res II

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU</para>

*Siemens article designations are registered trademarks of Siemens AG

<para>* UL approval and technical data shown apply to the cable used in the assemblies
