A2170804 - LUTZE DRIVEFLEX® XLPE (C) Servo I PVC with one Control pair and UL/TC-ER/WTTC/CE Approvals

A2170804 - LUTZE DRIVEFLEX® XLPE (C) Servo I PVC with one Control pair and UL/TC-ER/WTTC/CE Approvals

Part No.
A2170804
Type
VFD XLPE (C) SE I PVC (4×AWG8+(2×AWG14))

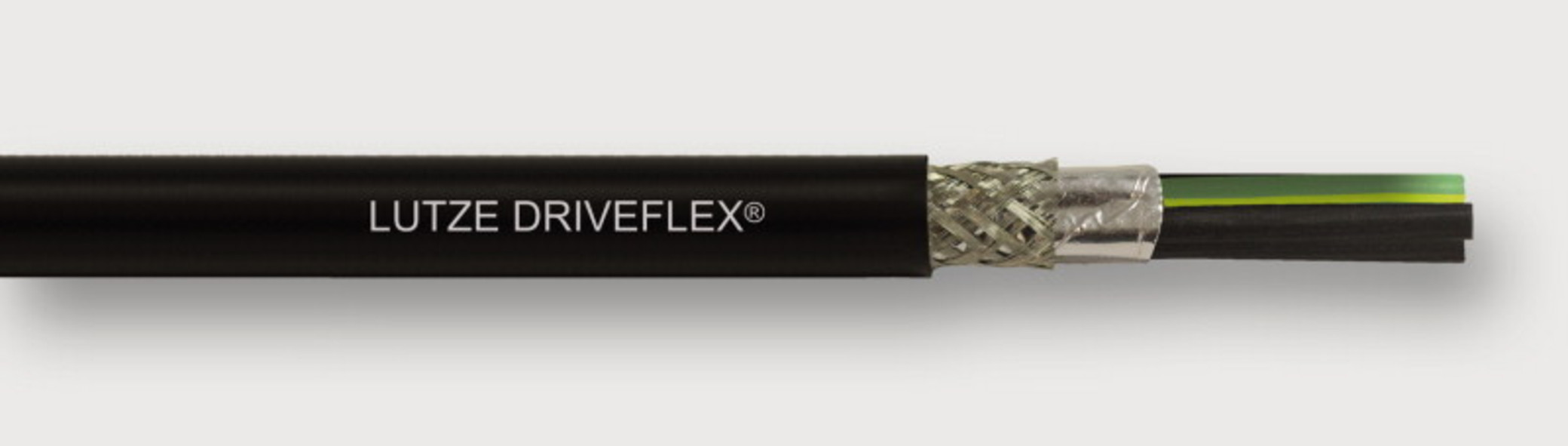

LUTZE DRIVEFLEX® XLPE (C) Servo I PVC
with one Control pair and UL/TC-ER/WTTC/CE Approvals
Flexible Composite VFD, Servo & Motor Supply Cable · Shielded
Symbols

Use/Application/Characteristics

Application
  • Shielded multi-conductor cable for VFD and Motor applications to connect power from drives to motors
  • Cable design for harsh industrial environments and operating conditions with high noise levels
  • XLPE thick wall insulation with low capacitance, ideal for applications with high voltage spikes and long cable runs
  • Compliant with NFPA 79 for wiring of industrial machinery
  • TC-ER for use with cable trays without conduit, which can reduce material and labor costs
  • WTTC – wind turbine tray cable rating for use in wind power generation
  • Dry, damp or wet conditions
Characteristics
  • Flexible XLPE conductor design
  • Non-wicking fillers
  • Effective dual layer shield for EMC compliance
  • Specially formulated jacket for oil resistance and easy strip design
  • Low capacitance cable
  • Sunlight resistant
  • Direct burial
  • UL Type TC-Exposed Run
  • Talc free and silicone free

Technical Data

Construction

Description
DRIVEFLEX® XLPE (C) 1 TSP PVC
Number of conductors/cross-section
(4AWG8+1×2×AWG14)
Jacket material
PVC
Jacket color
black RAL 9005
Outer Ø
26 mm
Outer Ø
1,025 inch
Weight
106,1 kg/100 m
Weight
713 Lbs/Mft
Cu-Index
321 Lbs/Mft

Element 1

Element construction
AWG8/4C
Conductor construction
AWG 8 (168/30)
Conductor
  • AWG conductor
  • CU-wire tin-plated
Conductor category
fine wire
Conductor marking
  • black
  • with white number print
  • green/yellow
Conductor insulation
  • XLPE
  • RHW-2
Stranding
strands braided together

Element 2

Element construction
AWG14/1TSP
Conductor construction
AWG 14 (41/30)
Conductor
  • AWG conductor
  • CU-wire tin-plated
Conductor category
fine wire
Conductor marking
  • black
  • with white number print
Conductor insulation
  • XLPE
  • XHHW-2
Stranding
conductors stranded in pairs

overall construction

Drain wire
CU-wire tin-plated
Overall shield
  • Foil shield
  • Tinned copper wires
  • Braid shield
  • optical cover approx. 80%
Jacket characteristics
  • Oil resistant
  • Silicone-free

Technical data

Rated voltage UN
  • 600 V TC-ER
  • 1000 V Flexible VFD servo cable 90C
  • 1000 V WTTC
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
6×D

Element 1

Element construction
AWG8/4C

Element 2

Element construction
AWG14/1TSP

Approvals/Standards

Approvals
  • cULus
  • TC-ER
  • UL DP-1
  • WTTC
  • Class 1 Div. 2 per NEC
  • Art. 336, 392, 501
  • cUL TC
  • CIC FT4
  • UL 1277
  • Wet/Dry
  • P-07-KA130021-MSHA
Conformity
  • CE
  • RoHS
  • REACH
Oil resistant according to
Oil Res II

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
