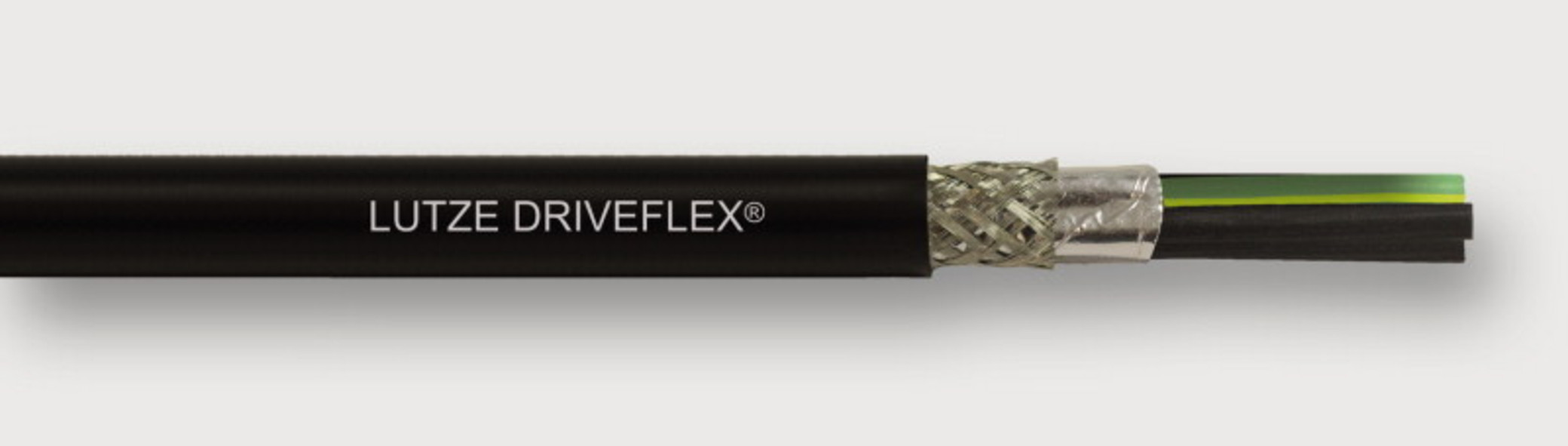

A2161004 - LÜTZE DRIVEFLEX XLPE (C) PVC With approvals for North America according to NEC, NFPA 79 and UL 508A

A2161004 - LÜTZE DRIVEFLEX XLPE (C) PVC With approvals for North America according to NEC, NFPA 79 and UL 508A

Part No.
A2161004
Type
VFD XLPE (C) PVC (4×AWG10)
LÜTZE DRIVEFLEX XLPE (C) PVC
With approvals for North America according to NEC, NFPA 79 and UL 508A

PVC motor, servo and frequency converter cables shielded

Symbols

Use/Application/Characteristics

Application
  • Shielded motor connection cable, especially for connecting motors to frequency converters
  • Flexible design for easy installation
  • Compliant with NFPA 79 standards
  • Low capacitance and high dielectric strength for long cable lengths from inverter to motor
  • In dry and moist rooms
  • Especially for industrial environments in mechanical and system engineering
  • „TC-ER“ for use in machines and open cable ducts
  • Flexible Motor Supply (Flexible VFD & Servo) for connection to electrical drives
  • „WTTC“ Wind Turbine Tray Cable for use in wind turbines
Characteristics
  • Special XLPE insulation with low capacitance
  • High dielectric strength
  • Effective EMC-compatible shielding thanks to 2-layer shield
  • PVC outer jacket, easy to strip
  • Sunlight-resistant
  • „Direct burial“ for installation in the ground
  • Silicone free
  • RoHS compliant

Technical Data

Construction

Description
DRIVEFLEX® XLPE (C) PVC
Number of conductors/cross-section
(4GAWG10)
Jacket material
PVC
Jacket color
black RAL 9005
Outer Ø
17,8 mm
Outer Ø
0,7 inches
Weight
53,4 kg/100 m
Weight
359 Lbs/Mft
Cu-Index
27,7 kg/100 m
Cu-Index
186 Lbs/Mft

Element 1

Element construction
AWG10/4C
Conductor construction
AWG 10 (105/30)
Conductor
  • AWG conductor
  • CU-wire tin-plated
Conductor category
fine wire
Conductor marking
  • black
  • with white number print
  • green/yellow
Conductor insulation
  • XLPE
  • RHW-2

overall construction

Drain wire
CU-wire tin-plated
Overall shield
  • Foil shield
  • Tinned copper wires
  • Braid shield
  • optical cover approx. 80%
Jacket characteristics
  • Oil resistant
  • Silicone-free

Technical data

Rated voltage UN
  • 600 V TC-ER
  • 1000 V Flexible VFD servo cable 90C
  • 1000 V WTTC
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
6×D

Element 1

Element construction
AWG10/4C

Approvals/Standards

Approvals
  • cULus
  • TC-ER
  • UL DP-1
  • WTTC
  • Class 1 Div. 2 per NEC
  • Art. 336, 392, 501
  • cUL TC
  • CIC FT4
  • UL 1277
  • Wet/Dry
  • P-07-KA130021-MSHA
Conformity
  • CE
  • RoHS
  • REACH
Oil resistant according to
Oil Res II

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2006/95/EC
