A1410001 - Feedback cables for Allen-Bradley and other Systems

A1410001 - Feedback cables for Allen-Bradley and other Systems

Part No.
A1410001
Type
SI (C)TPE SE(5×2×AWG22)UL GN
Feedback cables for Allen-Bradley and other Systems

TPE feedback cables · shielded · static

Symbols

Use/Application/Characteristics

Application
  • Incremental encoder cable and resolver cable for tacho sensor, brake sensor, speed sensor
  • Cable design for harsh industrial environments and operating conditions with high noise level
  • UL listed and NFPA 79 compliant
  • Dry, damp and wet locations
Characteristics
  • High active and passive interference resistance (EMC)
  • Flexible for easy installation
  • Specially formulated TPE jacket for superior oil resistance according to UL1581
  • Resistant to many mineral & vegetable based cutting oils
  • Non-wicking fillers
  • Extended temperature range and premium durability
  • Sunlight resistant
  • Talc and Silicone free

Technical Data

Construction

Description

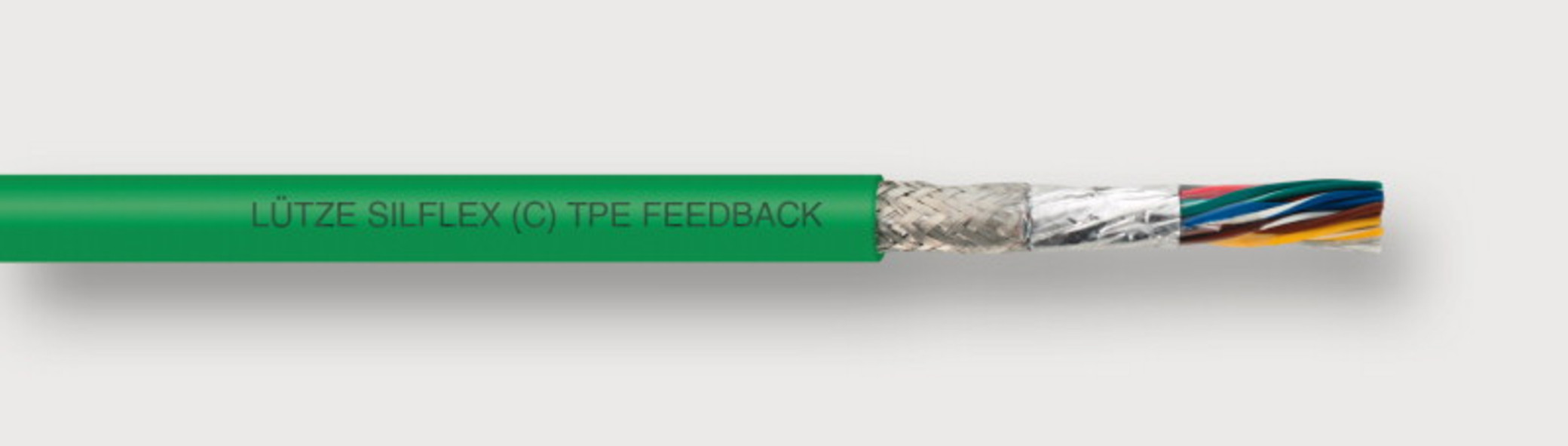

SILFLEX® (C) TPE FEEDBACK
Number of conductors/cross-section
(5×2×AWG22)
Jacket material
TPE
Jacket color
green RAL 6018
Outer Ø
10 mm
Outer Ø
0,395 inches
Weight
102 Lbs/Mft
Cu-Index
40 Lbs/Mft

Element 1

Element construction
5×2×AWG22
Conductor
  • AWG conductor
  • CU-wire tin-plated
Conductor category
fine wire
Conductor marking
  • black
  • black/white
  • red
  • red/white
  • green
  • green/white
  • yellow
  • yellow/white
  • orange
  • orange/white
Conductor insulation
Special PVC

overall construction

Overall wrapping
Fleece taping
Drain wire
CU-wire tin-plated
Overall shield
  • Foil shield
  • Braid shield
  • Tinned copper wires
  • optical cover approx. 85%
Jacket characteristics
  • Flame-retardant
  • Oil resistant
  • mineral oil-resistant
  • bio-oil-resistant
  • Silicone-free

Technical data

Rated voltage UN
  • 300 V UL PLTC-ER
  • 300 V UL CM
  • 600 V UL AWM 90 °C
Test voltage type
1500V
Temperature range moving
-5 °C … +90 °C
Temperature range fixed
-40 °C … +90 °C (105 °C)
Minimum bending radius fixed
6×D

Element 1

Element construction
5×2×AWG22

Approvals/Standards

Approvals
  • PLTC-ER
  • NEC 725
  • Class 1 Div. 2 per NEC
UL style
AWM 20626
Conformity
  • CE
  • RoHS
  • REACH
Burning behavior according to
  • UL Vertical-Tray
  • UL VW-1
Oil resistant according to
UL 1581

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU</para>

*Siemens article designations are registered trademarks of Siemens AG

<para>* UL approval and technical data shown apply to the cable used in the assemblies
