A60601 - LUTZE Single Conductor Hook Up Wire with UL/CE/MTW and HAR Approvals

A60601 - LUTZE Single Conductor Hook Up Wire with UL/CE/MTW and HAR Approvals

Part No.
A60601
Type
EA HAR-UL 1×16 SW

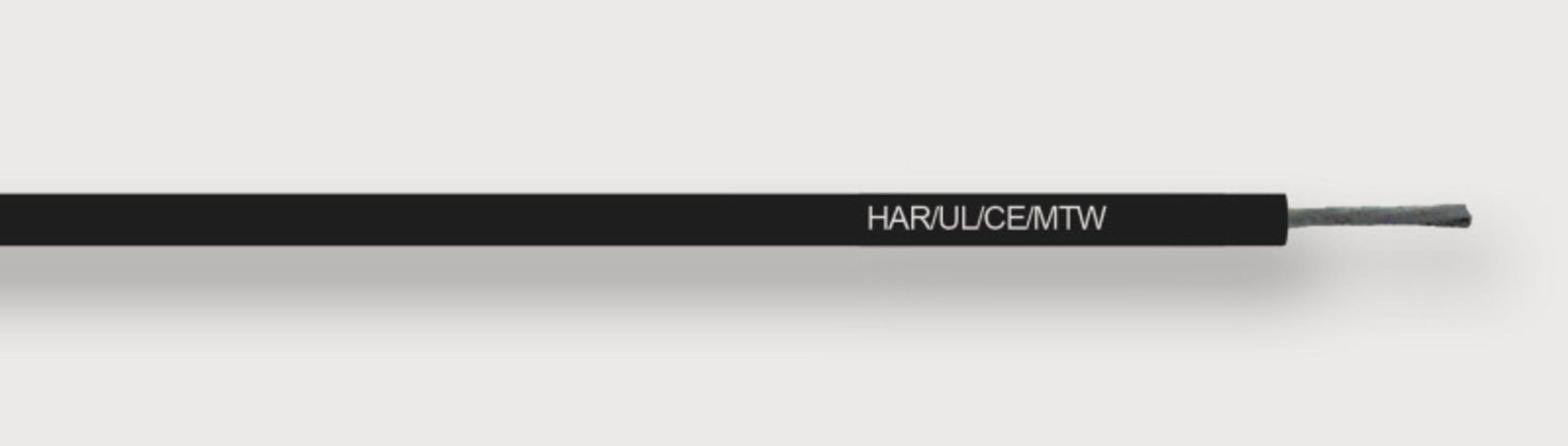

LUTZE Single Conductor Hook Up Wire
with UL/CE/MTW and HAR Approvals

Flexible Single Conductor Hook Up Wire · Multi-Norm

Symbols

Use/Application/Characteristics

Application
  • Multi rated single-conductor cable for wiring of cabinets and use in electrical and electronic equipment
  • Specially suited for machines exported to Europe (HAR) and North America (UL MTW + CSA TEW)
  • MTW rating as required per NFPA 79 for machine tool wiring
Characteristics
  • Fine stranding class 5, per VDE 2095
  • Very flexible for easy installation
  • Free from silicone and other varnish damaging substances
  • Conditionally resistant to oils, solvents, acids and bases
  • MTW rated
  • RoHS compliant

Technical Data

Construction

Description
SINGLE CONDUCTOR HOOK UP WIRE MULTI-NORM
Number of conductors/cross-section
1×16
Jacket color
black RAL 9005
Outer Ø
8,6 mm
Outer Ø
0,338 inches
Weight
18,5 kg/100 m
Weight
126 Lbs/Mft
Cu-Index
15,3 kg/100 m
Cu-Index
103 Lbs/Mft

Element 1

Element construction
AWG6/1C
Conductor
CU-wire tin-plated
Conductor category
  • Finely stranded DIN VDE 0295
  • IEC 60228, Class 5
Conductor marking
black
Conductor insulation
PVC
Conductor insulation standard
  • UL 1581
  • Class 43 heat and humidity resistant

Technical data

Rated voltage U0/U
450/750 V
Rated voltage UL
600 V
Test voltage type
AC3000V
Temperature range moving
-5 °C … +105 °C
Temperature range fixed
-40 °C … +105 °C
Minimum bending radius fixed
5×D

Element 1

Element construction
AWG6/1C

Approvals/Standards

Approvals
  • cULus
  • cURus
  • UL 1063 MTW Listed
  • TEW
  • HAR
  • HAR: HD 21.3 S3
UL style
AWM 1015
Conformity
  • CE
  • RoHS
  • REACH
Burning behavior according to
  • UL VW-1
  • IEC 60332-1

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU</para>

*Siemens article designations are registered trademarks of Siemens AG

<para>* UL approval and technical data shown apply to the cable used in the assemblies
