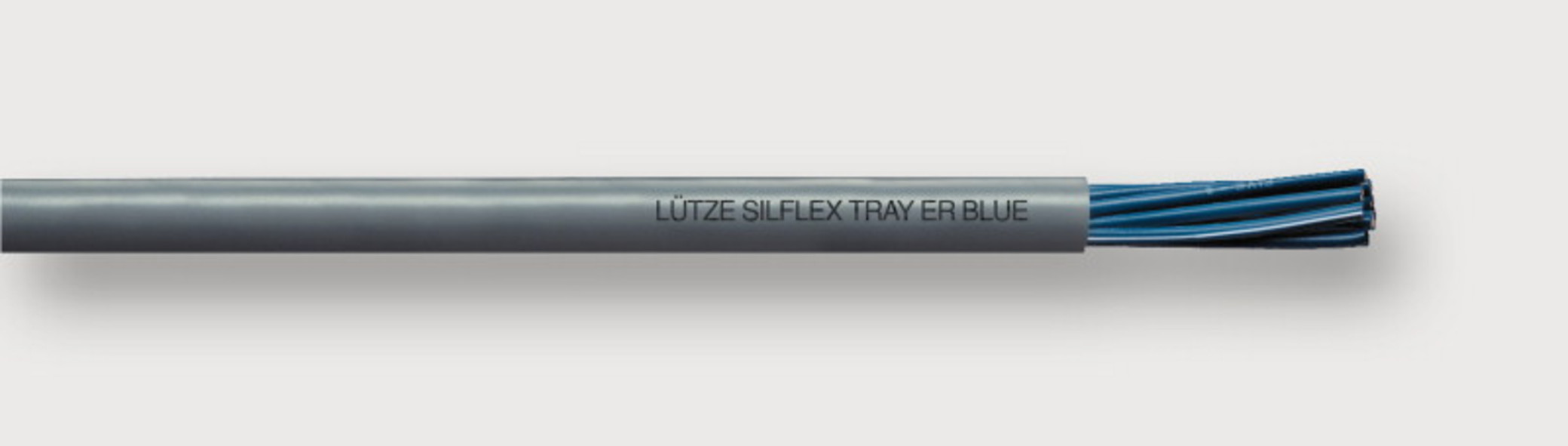

A3251819 - LÜTZE SILFLEX® Tray-ER Blue PVC with UL/TC-ER/CE Approvals, Blue Conductors for 24 V Applications

A3251819 - LÜTZE SILFLEX® Tray-ER Blue PVC with UL/TC-ER/CE Approvals, Blue Conductors for 24 V Applications

Part No.
A3251819
Type
SI N TRAY-ER Blue 19×AWG18 GR
LÜTZE SILFLEX® Tray-ER Blue PVC
with UL/TC-ER/CE Approvals, Blue Conductors for 24 V Applications
Flexible Control and Tray Cable · Unshielded
Symbols

Use/Application/Characteristics

Application
  • Multi-conductor cable for tray applications, with exposed run (open wiring) approval
  • Machine tools, machine and plant construction, HVAC technology, assembly and production lines, and other industrial applications
  • Automotive applications with 24 Volt
  • MTW rating as required per NFPA 79 for machine tool wiring
  • TC-ER for use on machines and in cable trays without conduit
  • Dry, damp and wet conditions
Characteristics
  • Flexible design with Nylon for crush impact resistance per UL 1277 and easy installation
  • Specially formulated jacket for oil resistance
  • Non-wicking fillers
  • Sunlight resistant
  • Direct burial
  • UL Type TC-Exposed Run
  • Talc free
  • Silicone free

Technical Data

Construction

Description
SILFLEX® TRAY-ER BLUE PVC
Number of conductors/cross-section
19×AWG16
Jacket material
PVC
Jacket color
grey RAL 7001
Outer Ø
14,8 mm
Outer Ø
0,583 inch
Weight
219 Lbs/Mft
Cu-Index
108 Lbs/Mft

Element 1

Element construction
AWG18/19C
Conductor construction
AWG 18 (19/30)
Conductor
  • AWG conductor
  • CU-wire bare
Conductor category
fine wire
Conductor marking
  • blue
  • with white number print
  • white/blue
  • with number print 2
  • green/yellow
Conductor insulation
  • PVC/Nylon
  • THHN – THWN

overall construction

Jacket characteristics
  • Oil resistant
  • Silicone-free

Technical data

Rated voltage UN
  • 600 V TC-ER
  • 600 V UL AWM
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
4×D

Element 1

Element construction
AWG18/19C

Approvals/Standards

Approvals
  • TC-ER
  • cURus
  • cULus
  • UL Type MTW or DP-1
  • Meets NEC 336,392
  • Class I & II, Div. 2
  • Class 1 Div. 2 per NEC
  • 501, 502, 505
  • UL 1277
  • cUL TC
  • CIC FT4
Conformity
  • CE
  • REACH
  • RoHS
Oil resistant according to
Oil Res I

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
