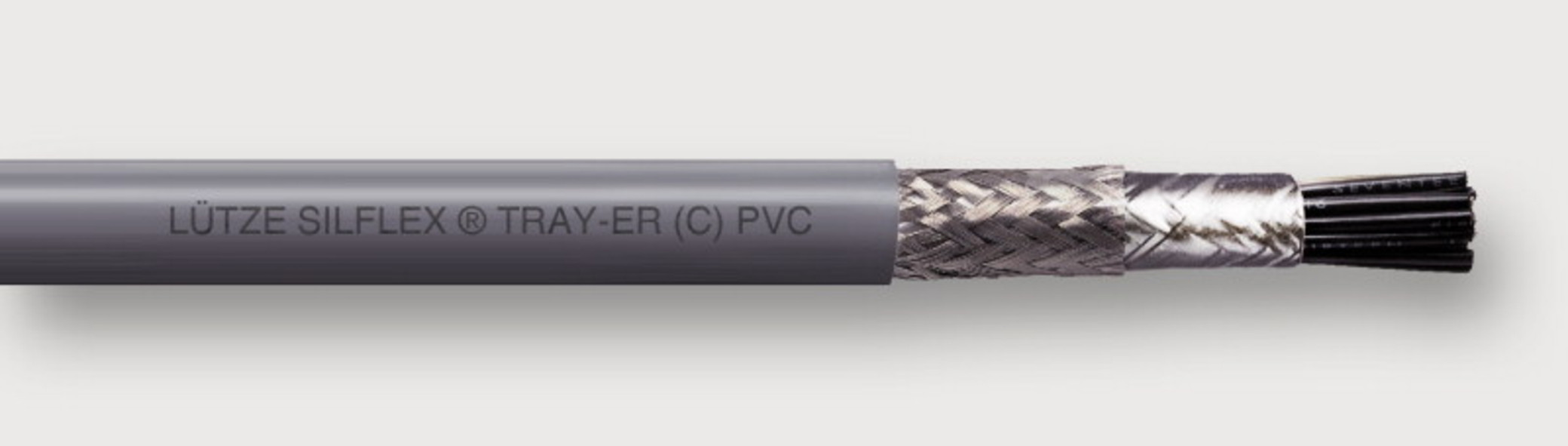

A3091603 - LÜTZE SILFLEX® N (C) PVC CONTROL TRAY CABLE With approvals for North America according to NEC, NFPA 79 and UL 508A
Part No.
A3091603
Type
SI N (C)PVC TRAY-ER (3×AWG16)GR
LÜTZE SILFLEX® N (C) PVC CONTROL TRAY CABLE
With approvals for North America according to NEC, NFPA 79 and UL 508A
With approvals for North America according to NEC, NFPA 79 and UL 508A
PVC control cables · shielded
Symbols




Use/Application/Characteristics
Application
- Multi-conductor control cables with TC-ER „Exposed Run“ approval
- Machine and device construction, HVAC technology, heating and climate technology
- Compliant with NFPA 79 standards
- „TC-ER““ for use on machines and in open cable ducts
- „WTTC“ Wind Turbine Tray Cable for use in wind turbines
- „MTW“ Machine Tool Wire
- „PLTC-ER“ Power Limited Tray Cable – Exposed Run
- „ITC-ER“ Instrumentation Tray Cable
- In dry, moist and wet rooms
Characteristics
- Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
- Easy stripping and fast installation
- Very flexible flexibility for complex installation distances and small bending radii
- Improved oil resistance due to specifically developed PVC jacket
- Sunlight-resistant
- „Direct burial“ for installation in the ground
- Silicone free
- RoHS compliant
Technical Data
Construction
Description
SILFLEX® CONTROL CABLE (C) PVC
Number of conductors/cross-section
(3×AWG16)
Jacket material
PVC
Jacket color
grey RAL 7001
Outer Ø
8,8 mm
Outer Ø
0,343 inch
Weight
12,9 kg/100 m
Weight
87 Lbs/Mft
Cu-Index
5,8 kg/100 m
Cu-Index
39 Lbs/Mft
Element 1
Element construction
AWG16/3C
Conductor construction
AWG 16 (26/30)
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
- green/yellow
Conductor insulation
- PVC/Nylon
- THHN – THWN
overall construction
Drain wire
CU-wire tin-plated
Overall shield
- Aluminium laminate
- Foil shield
- Braid shield
- Tinned copper wires
Jacket characteristics
- Oil resistant
- Silicone-free
Technical data
Rated voltage UN
- 600 V TC-ER/MTW
- 1000 V WTTC
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
6×D
Element 1
Element construction
AWG16/3C
Approvals/Standards
Approvals
- TC-ER
- WTTC
- UL Type MTW or DP-1
- Class 1 Div. 2 per NEC
- Art. 336, 392, 501
- cUL TC
- CIC FT4
- UL 1277
- PLTC-ER
- ITC-ER
UL style
AWM 20886
Conformity
- CE
- REACH
- RoHS
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2006/95/EC
Downloads
-
Data sheet
A3091603 LÜTZE SILFLEX N (C) PVC CONTROL TRAY CABLE Data sheet
Download, PDF 323 KB
