Part No.
A3081834
Type
SI N TRAY-ER 34×AWG18 GR

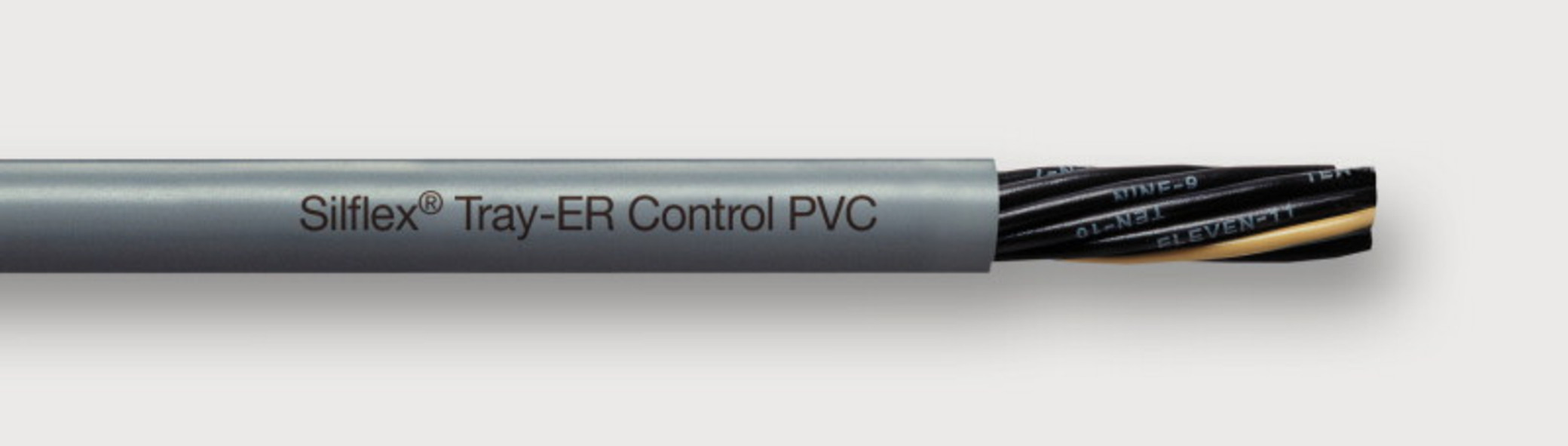

LÜTZE SILFLEX® N PVC CONTROL TRAY CABLE
With approvals for North America according to NEC, NFPA 79 and UL 508A
PVC control cables · unshielded
Symbols

Use/Application/Characteristics

Application
  • Multi-conductor control cables with TC-ER „Exposed Run“ approval
  • Machine and device construction, transport and conveyor technology, HVAC technology
  • Compliant with NFPA 79 standards
  • „TC-ER““ for use on machines and in open cable ducts
  • „WTTC“ Wind Turbine Tray Cable for use in wind turbines
  • „MTW“ Machine Tool Wire
  • „PLTC-ER“ Power Limited Tray Cable – Exposed Run
  • „ITC-ER“ Instrumentation Tray Cable – Exposed Run
  • In dry, moist and wet rooms
Characteristics
  • Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
  • Easy stripping and fast installation
  • Very flexible flexibility for complex installation distances and small bending radii
  • Improved oil resistance due to specifically developed PVC jacket
  • Sunlight-resistant
  • „Direct burial“ for installation in the ground
  • Silicone free
  • RoHS compliant

Technical Data

Construction

Description
SILFLEX® CONTROL CABLE PVC
Number of conductors/cross-section
34×AWG18
Cross-section AWG
AWG 18
Jacket material
PVC
Jacket color
grey RAL 7001
Outer Ø
18,9 mm
Outer Ø
0,744 inch
Weight
60 kg/100 m
Weight
404 Lbs/Mft
Cu-Index
30,7 kg/100 m
Cu-Index
205 Lbs/Mft

Element 1

Element construction
AWG18/34C
Conductor construction
AWG 18 (19/30)
Conductor
  • AWG conductor
  • CU-wire bare
Conductor category
fine wire
Conductor marking
  • black
  • with white number print
  • green/yellow
Conductor insulation
  • PVC/Nylon
  • THHN – THWN

overall construction

Jacket characteristics
  • Oil resistant
  • Silicone-free

Technical data

Rated voltage UN
  • 600 V TC-ER/MTW
  • 1000 V WTTC
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
4×D

Element 1

Element construction
AWG18/34C

Certifications/Standards

Certifications
  • TC-ER
  • WTTC
  • PLTC-ER
  • ITC-ER
  • cURus
  • cULus
  • UL Type MTW or DP-1
  • Class 1 Div. 2 per NEC
  • Art. 336, 392, 501
  • CIC FT4
  • cUL TC
  • UL 1277
UL style
AWM 20886
Conformity
  • CE
  • REACH
  • RoHS
Oil resistant according to
Oil Res II

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
