A3080204 - LÜTZE SILFLEX® N PVC CONTROL TRAY CABLE With approvals for North America according to NEC, NFPA 79 and UL 508A
Part No.
A3080204
Type
SI N TRAY-ER 4×AWG2 GR

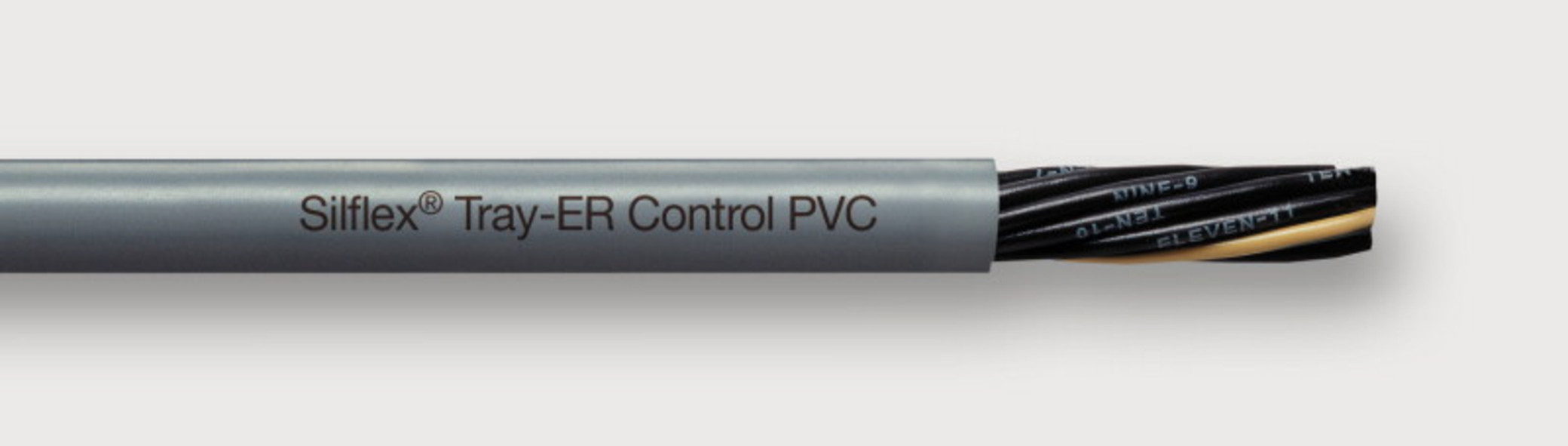

LÜTZE SILFLEX® N PVC CONTROL TRAY CABLE
With approvals for North America according to NEC, NFPA 79 and UL 508A
With approvals for North America according to NEC, NFPA 79 and UL 508A
PVC control cables · unshielded
Symbols




Use/Application/Characteristics
Application
- Multi-conductor control cables with TC-ER „Exposed Run“ approval
- Machine and device construction, transport and conveyor technology, HVAC technology
- Compliant with NFPA 79 standards
- „TC-ER““ for use on machines and in open cable ducts
- „WTTC“ Wind Turbine Tray Cable for use in wind turbines
- „MTW“ Machine Tool Wire
- „PLTC-ER“ Power Limited Tray Cable – Exposed Run
- „ITC-ER“ Instrumentation Tray Cable – Exposed Run
- In dry, moist and wet rooms
Characteristics
- Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
- Easy stripping and fast installation
- Very flexible flexibility for complex installation distances and small bending radii
- Improved oil resistance due to specifically developed PVC jacket
- Sunlight-resistant
- „Direct burial“ for installation in the ground
- Silicone free
- RoHS compliant
Technical Data
Construction
Description
SILFLEX® CONTROL CABLE PVC
Number of conductors/cross-section
4×AWG2
Jacket material
PVC
Jacket color
grey RAL 7001
Outer Ø
32,2 mm
Outer Ø
1,225 inch
Weight
201 kg/100 m
Weight
1352 Lbs/Mft
Cu-Index
130 kg/100 m
Cu-Index
874 Lbs/Mft
Element 1
Element construction
AWG2/4C
Conductor construction
AWG 2 (665/30)
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
- green/yellow
Conductor insulation
- PVC/Nylon
- THHN – THWN
overall construction
Jacket characteristics
- Oil resistant
- Silicone-free
Technical data
Rated voltage UN
- 600 V TC-ER/MTW
- 1000 V WTTC
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
4×D
Element 1
Element construction
AWG2/4C
Approvals/Standards
Approvals
- cURus
- TC-ER
- WTTC
- cULus
- UL Type MTW or DP-1
- Class 1 Div. 2 per NEC
- Art. 336, 392, 501
- CIC FT4
- cUL TC
- UL 1277
UL style
AWM 20886
Conformity
- CE
- REACH
- RoHS
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
