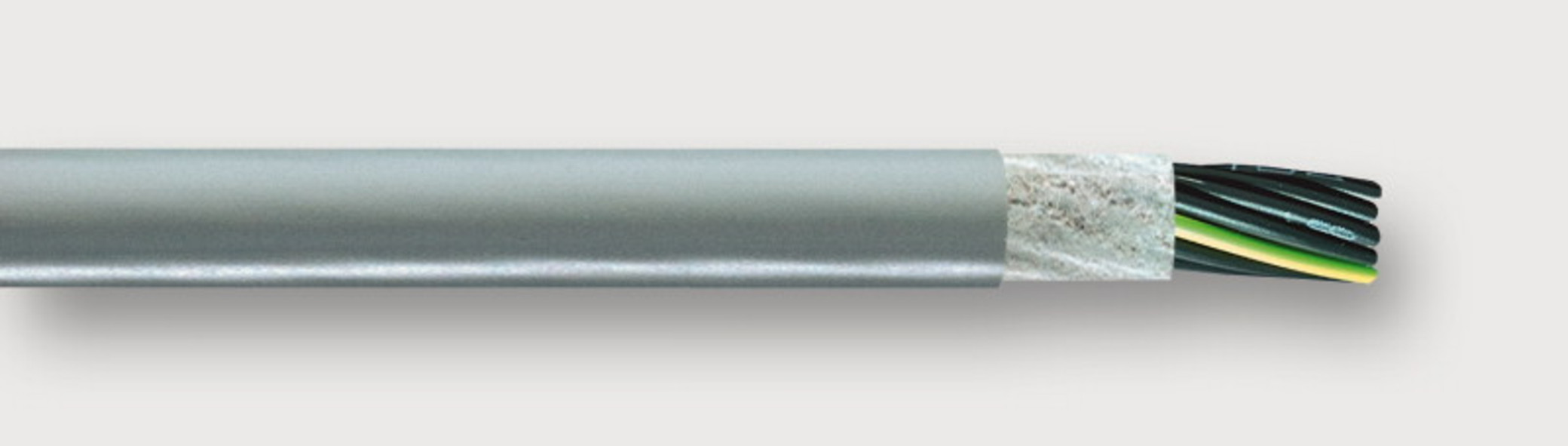

A1481405 - LÜTZE SUPERFLEX® N PVC For high requirements

A1481405 - LÜTZE SUPERFLEX® N PVC For high requirements

Part No.
A1481405
Type
SU N PVC 5G2,5
LÜTZE SUPERFLEX® N PVC
For high requirements
Symbols

Use/Application/Characteristics

Application
  • Machine and device construction, transport and conveyor technology, HVAC technology
  • In dry and damp rooms
  • As a monitoring, measurement and control cable for industrial applications
  • For installation in energy chains with constant linear movement
Characteristics
  • Very small cable diameters due to special TPE conductor insulation (HGI) according to UL standard
  • Reduced friction due to high glide conductor insulation (HGI) for high mechanical loads
  • Flexibility due to super finely stranded wire construction
  • Low capacitance, very good electrical properties
  • Especially developed PVC jacket according to UL class 43
  • Filler without wicking
  • Low adhesion, abrasion-resistant, nick-resistant, tear resistant
  • Hydrolysis-resistant, microbe-resistant, and rot-resistant
  • Use in dry or damp environment
  • Silicone free
  • RoHS-compliant

Technical Data

Construction

Description
SUPERFLEX® N PVC
Number of conductors/cross-section
5G2.5
Jacket material
Special PVC
Jacket color
grey RAL 7001
Outer Ø
9,7 mm
Outer Ø
0,382 inch
Weight
132 Lbs/Mft
Cu-Index
77 Lbs/Mft

Element 1

Element construction
AWG 14 / 2,5 mm²
Conductor
CU-wire bare
Conductor category
  • Superfinely stranded DIN VDE 0295
  • IEC 60228, Class 6
Conductor marking
  • black
  • with white number print
  • green/yellow
Conductor insulation
Special TPE

overall construction

Overall stranding
  • conductors twisted without mechanical stress
  • layer pitch optimised
Overall wrapping
Fleece taping
Jacket characteristics
  • abrasion resistant
  • tough
  • tear resistant
  • microbe resistant
  • hydrolysis-resistant
  • rot-resistant
  • UV resistant (normal lighting conditions)
  • Oil resistant
  • Silicone-free
  • Flame-retardant

Technical data

Rated voltage UN
600 V UL AWM 105 °C
Test voltage type
3000V
Temperature range moving
-15 °C … +90 °C
Temperature range fixed
-40 °C … +105 °C
Minimum bending radius moving
7.5×D
Minimum bending radius fixed
4×D

Element 1

Element construction
AWG 14 / 2,5 mm²
Insulation resistance at 20 °C
100 MΩ×km

Approvals/Standards

Approvals
  • cURus
  • AWM I/II A/B 105°C 600V FT1
UL style
AWM 2586
Conformity
  • RoHS
  • 2015/863/EU
  • CE
  • REACH
Burning behavior according to
  • UL VW1, FT1
  • DIN EN 50265-2-1
Oil resistant according to
  • UL 4d100C
  • UL Oil Res 80 °C
  • DIN EN 60811-2-1
UV-resistant according to
DIN EN ISO 4892-2-A

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
