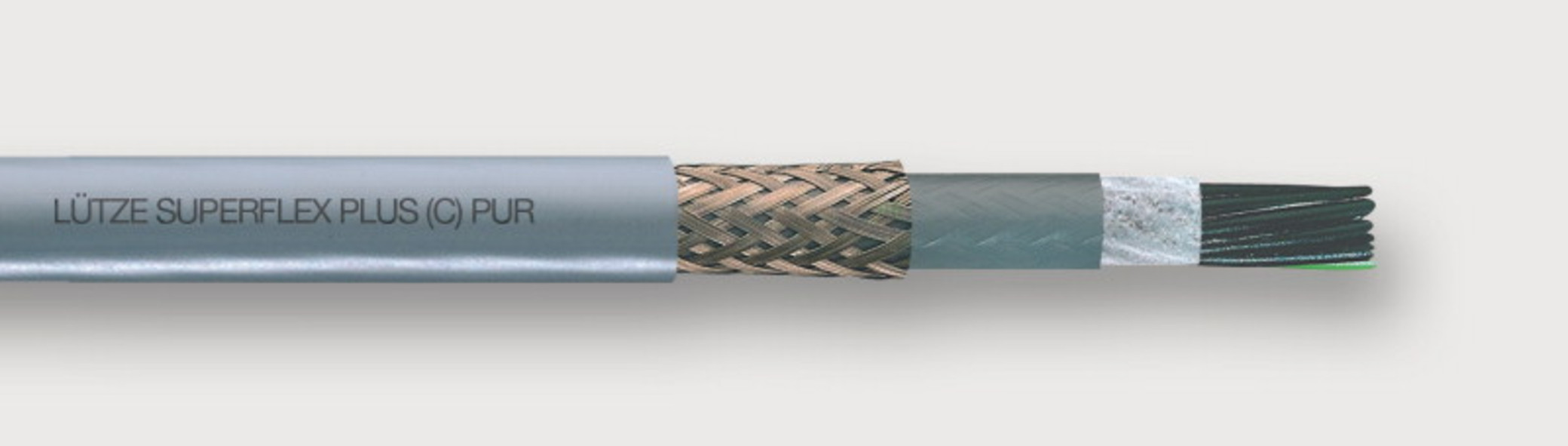

LÜTZE SUPERFLEX® PLUS N (C) PUR 300 V
For highest requirements
PUR control cables · C-track compatible · shielded
Symbols

Use/Application/Characteristics

Application
  • Machine and device construction, transport and conveyor technology, HVAC technology
  • In areas with high concentrations of people or material assets, where corrosive gases need to be avoided in the event of fire
  • As a monitoring, measurement and control cable for industrial applications
  • Especially for harsh environments
  • For installation in energy chains with constant linear movement
  • Anywhere where electrical interference fields can influence the signal transmission
Characteristics
  • Reduced friction due to very smooth conductor insulation (HGI) for high mechanical loads
  • High active and passive interference resistance (EMC)
  • Braided shield optimized for continuous flexing applications
  • Low capacitance, very good electrical properties
  • Flame-retardant, self-extinguishing
  • Halogen-free, no corrosive gases
  • Very good flexing strength
  • Low adhesion, Abrasion-resistant, Tear resistant
  • Hydrolysis-resistant, microbe-resistant, and rot-resistant
  • Weathering, ozone and UV resistant (normal lighting conditions)
  • Good resistance to wear and salt water
  • Excellent coolant and lubricant resistance
  • Largely resistant to oils, greases, alcohol-free benzines and kerosene
  • Silicone free
  • RoHS-compliant

Technical Data

Construction

Description
SUPERFLEX® PLUS N (C) PUR 300V
Number of conductors/cross-section
(5G1.0)
Jacket material
PUR
Jacket color
grey RAL 7001
Outer Ø
9,1 mm
Outer Ø
0,358 inch
Weight
11,4 kg/100 m
Weight
82 Lbs/Mft
Cu-Index
6,8 kg/100 m
Cu-Index
46 Lbs/Mft

Element 1

Element construction
(5G1.0)
Conductor
CU-wire bare
Conductor category
  • IEC 60228, Class 6
  • Superfinely stranded DIN VDE 0295
  • class 6
Conductor marking
  • black
  • with white number print
  • green/yellow
Conductor insulation
Special TPE

overall construction

Overall stranding
  • conductors layered construction
  • layer pitch optimised
  • conductors twisted without mechanical stress
Overall wrapping
Fleece taping
Inner jacket
TPE
Overall shield
  • Braid shield
  • Tinned copper wires
  • optical cover approx. 85%
Jacket characteristics
  • Flame-retardant
  • self-extinguishing
  • Oil resistant
  • grease-resistant
  • petrol-resistant (alcohol-free)
  • kerosene-resistant
  • Silicone-free
  • Halogen free

Technical data

Rated voltage U0/U
300/500 V
Rated voltage UL
300 V
Test voltage type
AC3000V
Temperature according to UL
80 °C
Temperature range moving
-25 °C … +80 °C
Temperature range fixed
-40 °C … +80 °C
Minimum bending radius moving
10×D
Minimum bending radius fixed
6×D

Element 1

Element construction
(5G1.0)
Insulation resistance at 20 °C
1000 MΩ×km
Operating capacitance wire-wire
81 pF/m
Operating capacitance wire-shield
117 pF/m

Approvals/Standards

Approvals
cURus
UL style
AWM 20233
Conformity
  • CE
  • RoHS
  • REACH
Burning behavior according to
  • IEC 60332-1-2
  • DIN EN 60332-1-2
  • VDE 0482 322-1-2
  • UL 1581 Part VW-1 Flame Test
  • UL FT1
Halogen free according to
  • DIN EN 60754-1
  • IEC 60754-1
UV-resistant according to
DIN EN ISO 4892-2-A

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
