Part No.
108391A
Type
SI N PVC 2×AWG16

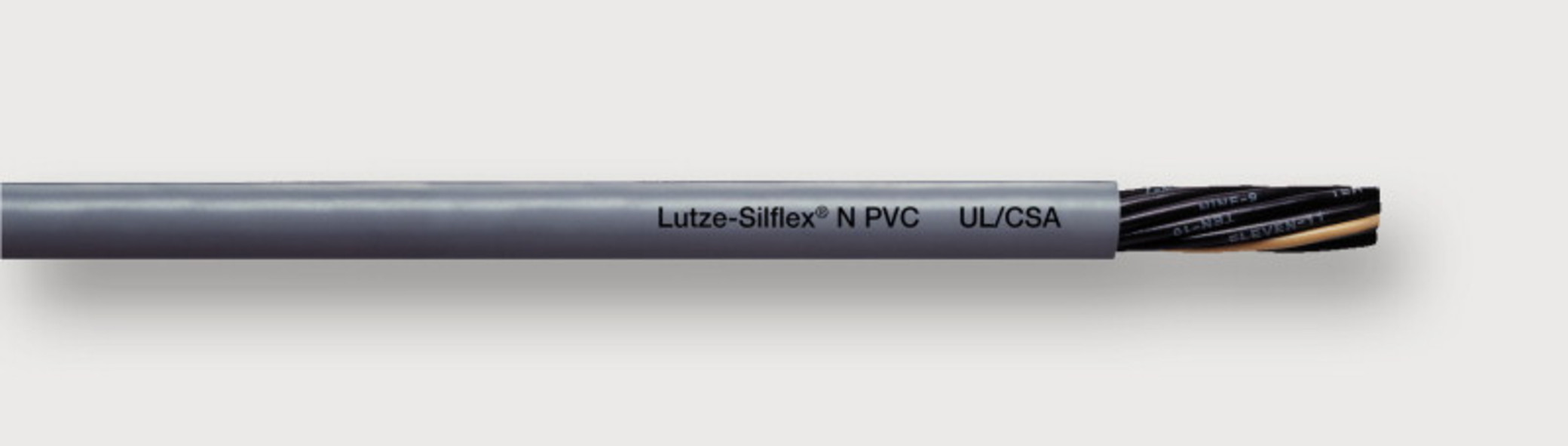

LÜTZE SILFLEX® N PVC with UL/CE Approvals
Flexible Control Cable · Unshielded
Symbols

Use/Application/Characteristics

Application
  • Multi-conductor cable for machine tools, handling equipment, machine and plant construction, transport and conveying technology
  • Easy strip design specially suited for cable assemblies
Characteristics
  • Most flexible design without Nylon for easy stripping and easy installation
  • Easy routing and bending due to flexibility
  • Specially formulated gray PVC jacket for oil resistance
  • Resistant to mineral oils, coolants and solvents
  • Non-wicking fillers

Technical Data

Construction

Description
SILFLEX® N PVC
Number of conductors/cross-section
2×AWG16
Jacket material
PVC
Jacket color
grey RAL 7001
Outer Ø
6,9 mm
Outer Ø
0,27 inch
Weight
41 Lbs/Mft
Cu-Index
16 Lbs/Mft

Element 1

Element construction
AWG16/2C
Conductor construction
AWG 16 (26/30)
Conductor
  • AWG conductor
  • CU-wire bare
Conductor category
fine wire
Conductor marking
  • black
  • with white number print
Conductor insulation
PVC

overall construction

Jacket characteristics
  • Flame-retardant
  • Oil resistant
  • mineral oil-resistant
  • coolant-resistant
  • solvent-resistant
  • Silicone-free

Technical data

Rated voltage UN
600 V UL AWM
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
4×D

Element 1

Element construction
AWG16/2C

Approvals/Standards

Approvals
  • cURus
  • AWM I/II A/B FT4
UL style
AWM 2587
Conformity
  • CE
  • RoHS
  • REACH
Burning behavior according to
UL VW-1
Oil resistant according to
Oil Res II

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
