108374A - LÜTZE SILFLEX® N PVC with UL/CE Approvals
Part No.
108374A
Type
SI N PVC 5GAWG16

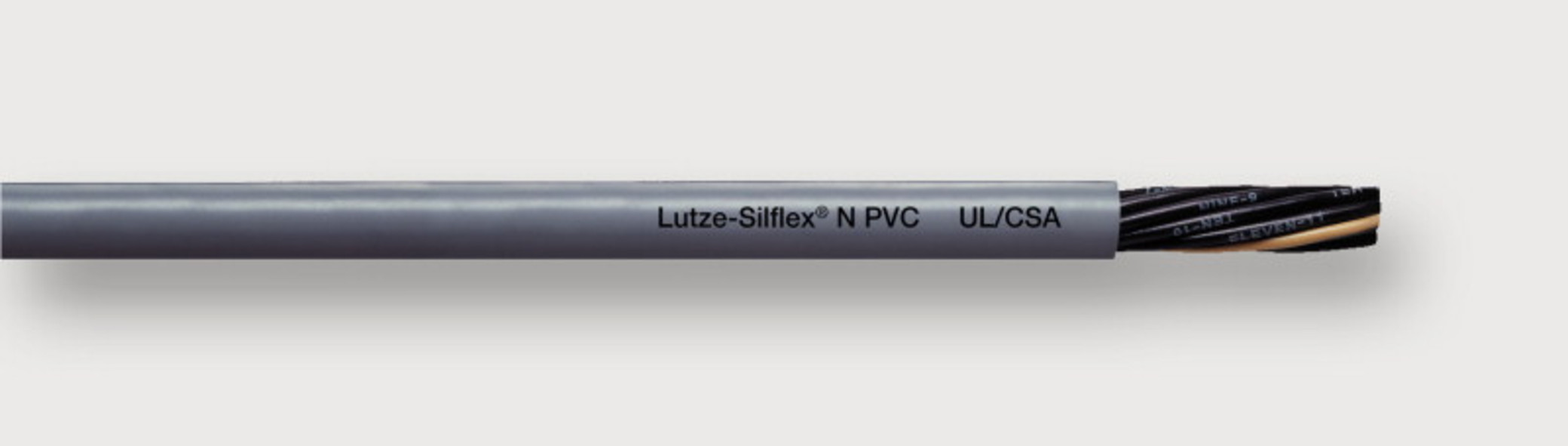

LÜTZE SILFLEX® N PVC with UL/CE Approvals
Flexible Control Cable · Unshielded
Symbols




Use/Application/Characteristics
Application
- Multi-conductor cable for machine tools, handling equipment, machine and plant construction, transport and conveying technology
- Easy strip design specially suited for cable assemblies
Characteristics
- Most flexible design without Nylon for easy stripping and easy installation
- Easy routing and bending due to flexibility
- Specially formulated gray PVC jacket for oil resistance
- Resistant to mineral oils, coolants and solvents
- Non-wicking fillers
Technical Data
Construction
Description
SILFLEX® N PVC
Number of conductors/cross-section
5×AWG16
Jacket material
PVC
Jacket color
grey RAL 7001
Outer Ø
8,7 mm
Outer Ø
0,341 inch
Weight
84 Lbs/Mft
Cu-Index
40 Lbs/Mft
Element 1
Element construction
AWG16/5C
Conductor construction
AWG 16 (26/30)
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
- green/yellow
Conductor insulation
PVC
overall construction
Jacket characteristics
- Flame-retardant
- Oil resistant
- mineral oil-resistant
- coolant-resistant
- solvent-resistant
- Silicone-free
Technical data
Rated voltage UN
600 V UL AWM
Temperature range fixed
-40 °C … +90 °C
Minimum bending radius fixed
4×D
Element 1
Element construction
AWG16/5C
Approvals/Standards
Approvals
- cURus
- AWM I/II A/B FT4
UL style
AWM 2587
Conformity
- CE
- RoHS
- REACH
Burning behavior according to
UL VW-1
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
