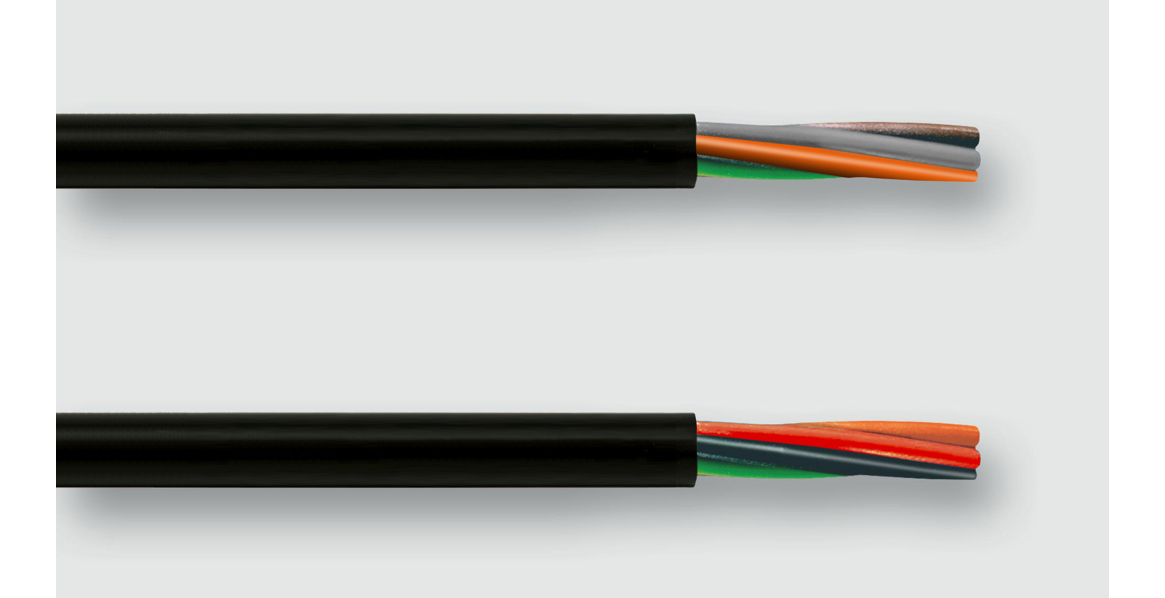

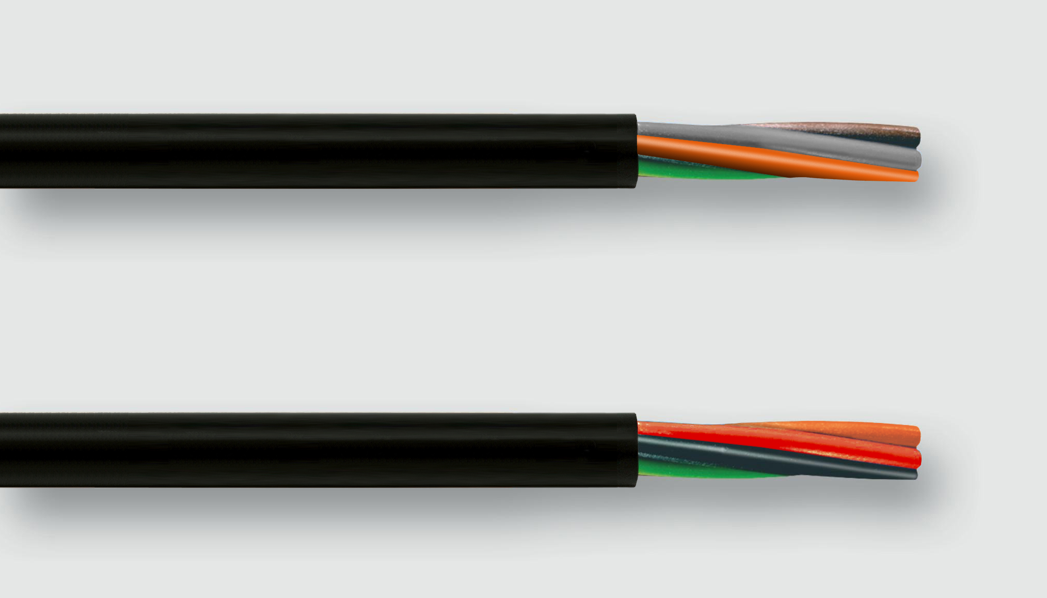

SEOOW Flexible Cord

UL Type SEOOW flexible cords are engineered for “extra-hard” usage to ensure maximum operational uptime across harsh, unpredictable settings. These unshielded multi-conductor cords target critical power infrastructure, ranging from high-density data center power distribution to heavy industrial manufacturing environments.

Key Technical Specifications
LUTZE provides conductor sizes up to 2 AWG with various color-coding options to match design specs, including ICEA Method 1 Table E-1 and specialized options (such as Brown, Orange, Yellow, Gray, and Green assignments for power applications).

• Voltage Rating: SEOOW 105C 600 Volts Max
• Operational Temperature Range: -40°C to +105°C
• Minimum Bending Radius: 3 x Cable Outer Diameter (OD)
• Conductor Core Design: Class K flexible fine wire stranded bare copper
• Oil Resistant TPE: Certified compliant per UL 62 Oil Res standards
• Flame Behavior Testing: Flame retardant and self-extinguishing per FT2 criteria
• Regulatory Compliance: cULus Listed, NEC 501/502 (Class I & II, Div. 2), CE, RoHS, REACH, and TSCA compliant

LUTZE SEOOW cords are available upon request through LUTZE’s network of authorized distribution partners across North America. For additional information, technical questions, or bulk pricing inquiries, please contact the LUTZE Inside Sales and Support team at sales(at)lutze.com.

LUTZE Part numbers:
A4621403, A4621404, A4621405, A4621203, A4621204, A4621205, A4621003, A4621004, A4621005, A4620803, A4620804, A4620805, A1190486, A4620603, A4620604, A4620605, A1190508, A4620403, A4620404, A4620405, A1190465, A4620303, A4620304, A4620305, A1190464, A4620203, A4620204, A4620205, A1190499
